MXS-Z Series

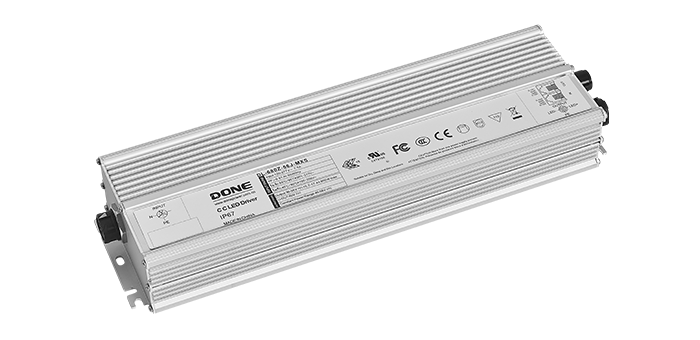

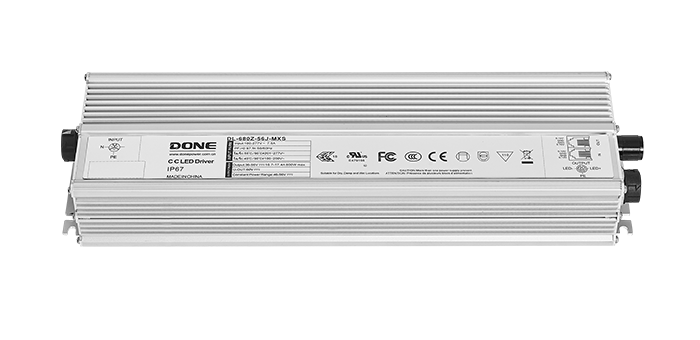

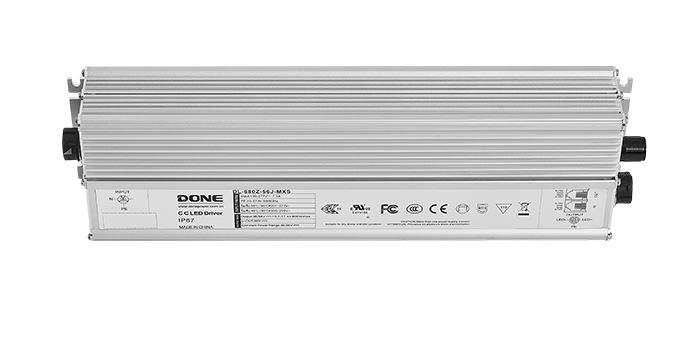

DL-680Z-MXS
Power: 680W
Series: Constant current type
Application: plant lighting, sports lighting, etc.
Certificates: CB, CE, CCC, ENEC, SAA
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V～ 50/60Hz
Efficiency 95.5% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 6KV, common mode 15KV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-680Z-56X-MXS | 680W | 100-277V | 36-56V | 46-56V | 11-14.8A | 95.5% | 0.96 | 6/15KV | 315*90*44.5mm |
| DL-680Z-56J-MXS | 680W | 100-277V | 36-56V | 46-56V | 11-14.8A | 95.5% | 0.96 | 6/15KV | 325*90*44.5mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H205 |
| The number of products packaged per box | 6 pieces/box |
| Net weight of single machine | 2.58Kg |
| Full container gross weight | 15.73Kg |
