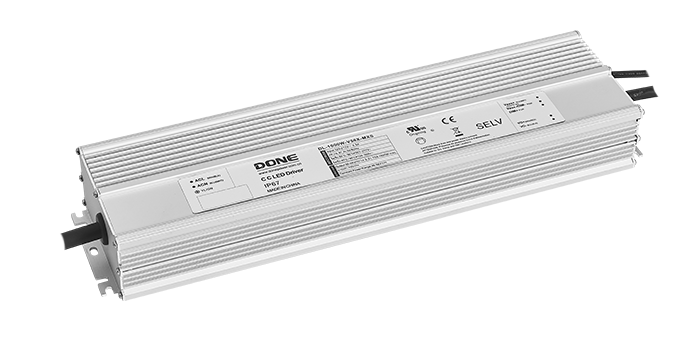

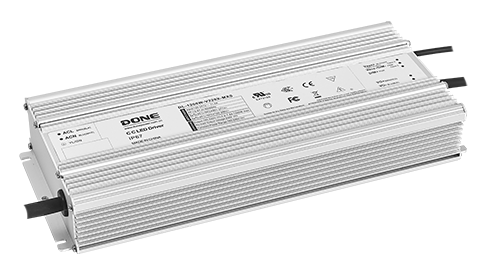

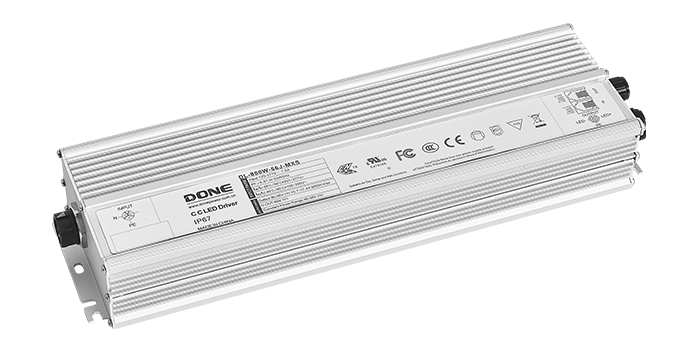

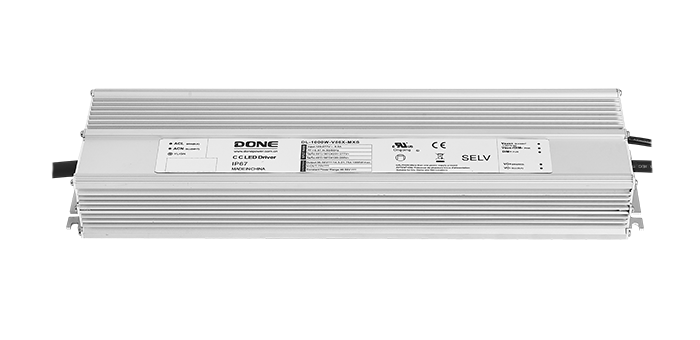

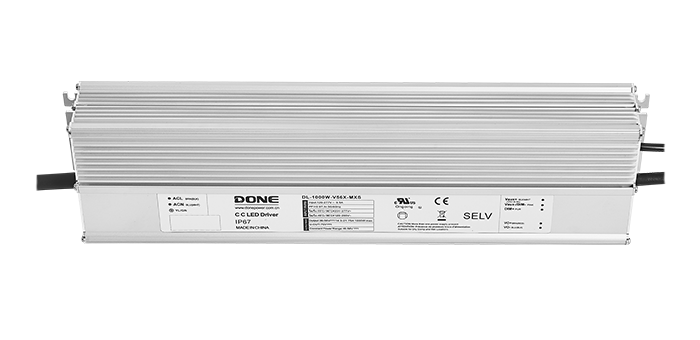

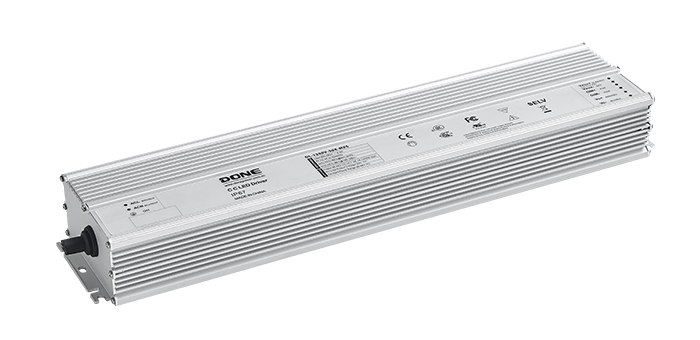

MXS-Z Series
DL-1000Z-MXS
Power: 1000W
Series: Constant current type
Application: plant lighting, sports lighting, etc.
Certificates: CB, CE, CCC, ENEC, SAA
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V～ 50/60Hz
Efficiency 95.5% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 6KV, common mode 15KV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-1000Z-56X-MXS | 1000W | 100-277V | 36-56V | 46-56V | 14.3-21.75A | 95.5% | 0.97 | 6/15KV | 355*90*44.5mm |
| DL-1000Z-56J-MXS | 1000W | 100-277V | 36-56V | 46-56V | 14.3-21.75A | 95.5% | 0.97 | 6/15KV | 365*90*44.5mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H205 |
| The number of products per box | 6 pieces/box |
| Net weight of single machine | 3.37Kg |
| Full container gross weight | 20.47Kg |
