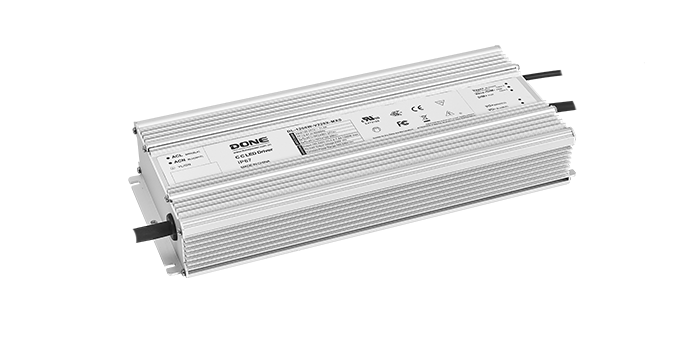

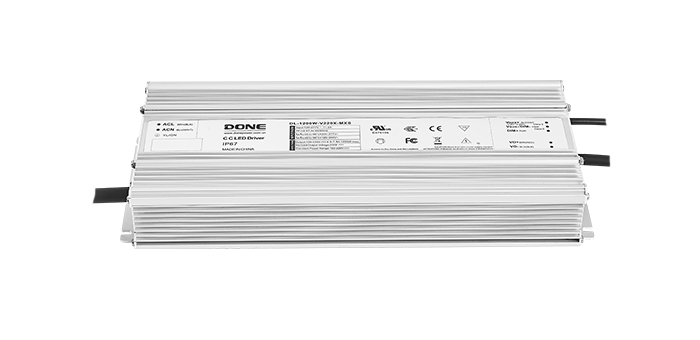

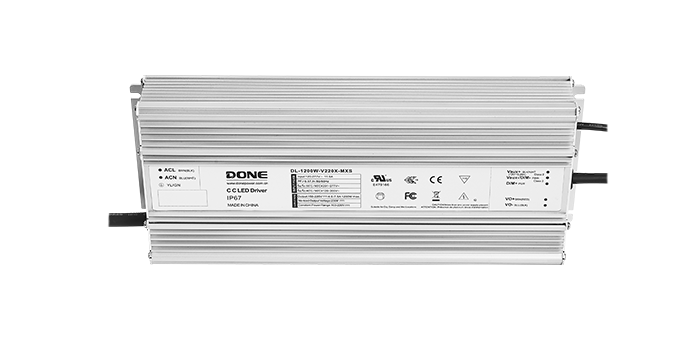

MXS-Z Series
DL-1200Z-MXS/DL-1200W-MXS
Power: 1200W
Series: Constant current type
Application: plant lighting, sports lighting, etc.
Certificates: CB, CE, CCC, ENEC, SAA
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V/120-277V～ 50/60Hz
Efficiency 95.5% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 6KV, common mode 15KV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-1200Z-56X-MXS | 1200W | 100-277V | 36-56V | 46-56V | 16-26.1A | 95.5% | 0.97 | 6/15KV | 400*90*48 mm |
| DL-1200Z-250X-MXS | 1200W | 100-277V | 200-250V | 209-250V | 4-5.75A | 96.0% | 0.97 | 6/15KV | 315*130*48mm |
| DL-1200W-V220X-MXS | 1200W | 120-277V | 150-220V | 160-220V | 4-7.5A | 96.0% | 0.97 | 6/15KV | 315*130*48mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H205 |
| The number of products packaged per box | 6 pieces/box |
| Net weight of single machine | 3.90Kg |
| Full container gross weight | 23.65Kg |
411-DL-1200Z-X-MXS Series Product Specification (Chinese) V1.0
411-DL-1200Z-X-MXS Series Product Specification (English) V1.0
365-DL-1200Z-250X-MXS Series Product Specification (Chinese) V1.1
365-DL-1200Z-250X-MXS Series Product Specification (English) V1.1
291-DL-1200W-V220X-MXS Series Product Specification (Chinese) V1.0
291-DL-1200W-V220X-MXS Series Product Specification (English) V1.0
