MXG Series
Family series products, constant power drive, constant current output control mode, Class I structure
Input voltage: 120-277Vac/100-277Vac optional, efficiency up to 96% Protection level: IP67/IP65/IP42 Lightning protection level: 6KV/15KV
Isolated dimming function: three-in-one dimming (0-10V, PWM, resistor dimming) life warning, soft start, light decay compensation, protection functions: overload, short circuit, overtemperature, overvoltage, undervoltage, etc.

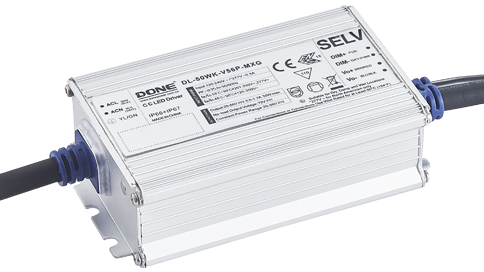

MXG Basic Series
Input voltage: 120-277Vac
A: Non-dimming potentiometer current adjustment version
P: Programmable 0-10V/PWM/time control
X: Programmable 0-10V/PWM/time control +12V/0.25A

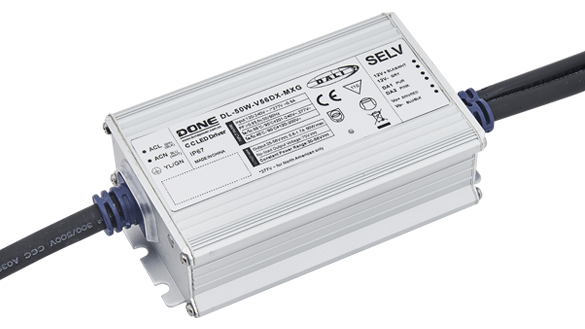

MXG-D DALI-2 Series
Input voltage: 120-277Vac DX: DAL1-2 + programmable + auxiliary source version

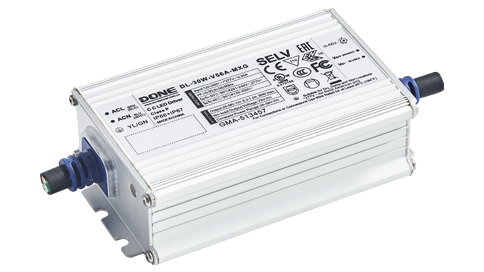

MXG-K CLASS II series
Input voltage: 120-277Vac KA: Non-dimming potentiometer current adjustment version KP: Programmable 0-10V/PWM/time control + CLASS II II

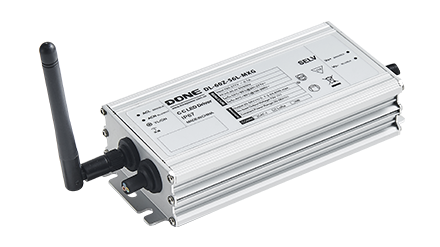

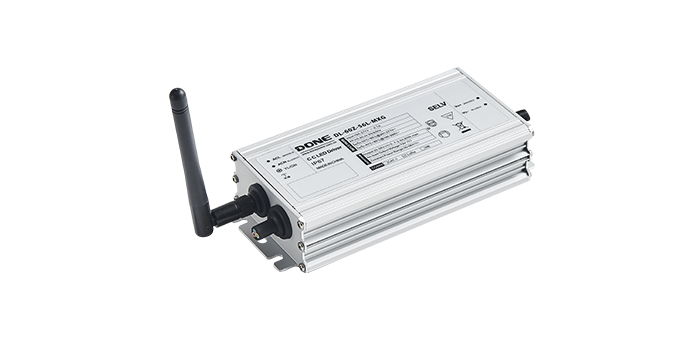

MXG-L Series
Input voltage: 100-277Vac
L: LORA communication
Power Model
(Click on the power segment below to view related parameters)
