MXG-D DALI-2/D4i Series

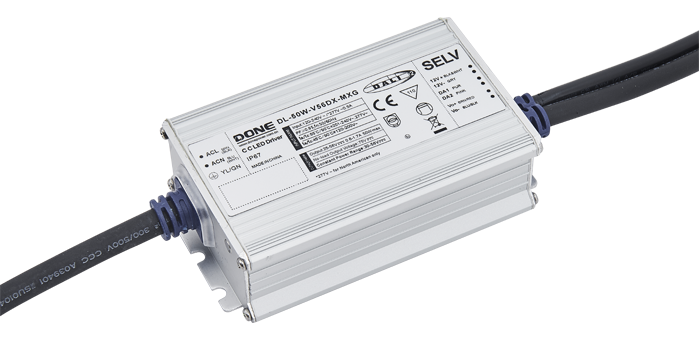

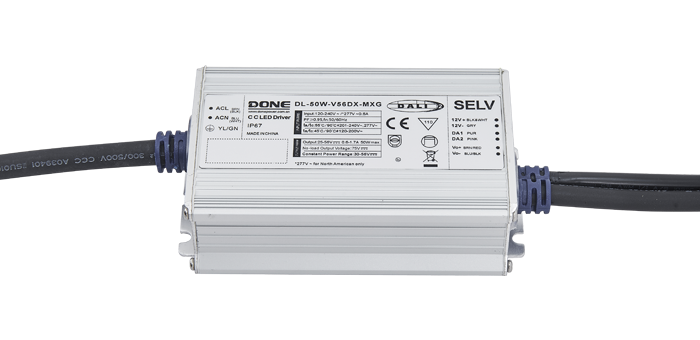

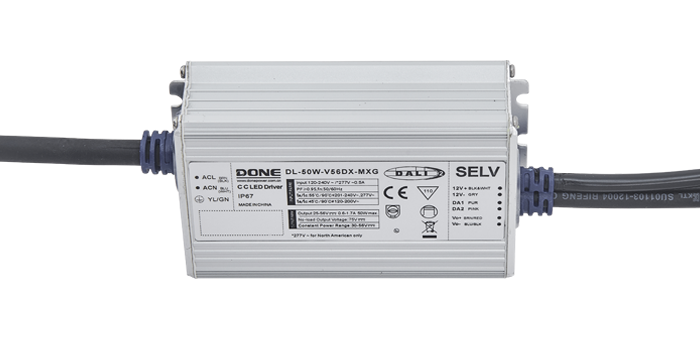

DL-50W-DX/GX-MXG

Power: 50W

Series: Constant current type

Application: street lamp, floodlight, square lighting, etc.

Certificate: ENEC, CE, CB, SAA, EAC, CCC, DALI-2

Warranty: 5 years


Online Consultation

Planning Book
  • Features
  • Selection Table
  • Packaging & Structure
  • Downloads

Support DALI-2+12V auxiliary output

Input voltage: 120-277V ～ 50/60Hz

Metal shell structure, protection level: IP67

Efficiency 89% (Typ.)

Metal shell structure, protection level: IP67

Lightning protection level: differential mode 6kV, common mode 15kV

Product modelRated powerInput voltageOutput voltageConstant power voltageOutput currentEfficiencyPF valueLightning protection levelProduct size
DL-50W-V56DX-MXG50W25-56V30-56V0.6-1.7A89.0%0.956/15KV110*63*32mm
DL-50W-V72DX-MXG50W120-277V36-72V48-72V0.5-1.05A89.0%0.956/15KV110*63*32mm
DL-50W-V56GX-MXG50W120-277V25-56V30-56V0.6-1.7A89.0%0.956/15KV110*63*32mm
DL-50W-V72GX-MXG50W120-277V36-72V48-72V0.5-1.05A89.0%0.956/15KV110*63*32mm
The dimensions of the packing box are (unit: mm)L475*W350*H205
The number of products per box32 pieces/box
Net weight of a single machine043Kg
Gross weight of the whole box14.01Kg
