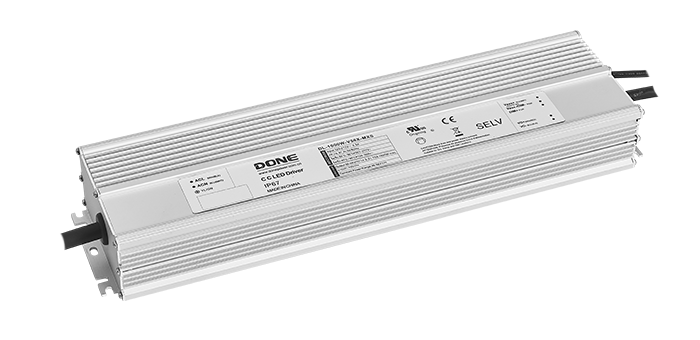

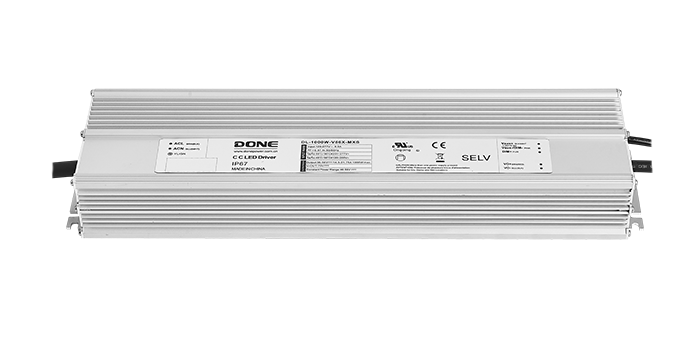

MXS-V Series

DL-1000V-MXS

Power: 1000W

Series: Constant current type

Application: Plant lighting, sports lighting, etc.

Certificate: CB, CE, CCC, ENEC, FCC, UL

Warranty: 5 years

Online Consultation

Planning Book
  • Features
  • Selection Table
  • Packaging & Structure
  • Downloads

Class I structure

Input voltage: 200-480V～ 50/60Hz

Efficiency 96% (Typ.)

Constant power drive, constant current output control mode

Metal shell structure, protection level: IP67

Lightning protection level: differential mode 6KV, common mode 15KV

Product modelRated powerInput voltageOutput voltageConstant power voltageOutput currentEfficiencyPF valueLightning protection levelProduct size
DL-1000V-56X-MXS1000W36-56V46-56V11-21.75A96.0%0.976/15KV345*90*44.5mm
DL-1000V-56J-MXS1000W200-480V36-56V46-56V11-21.75A96.0%0.976/15KV355*90*44.5mm
DL-1000V-56JS-MXS1000W200-480V36-56V46-56V11-21.75A96.0%0.976/15KV355*90*44.5mm
The dimensions of the packing box are (unit: mm)L475*W350*H205
The number of products per box6 pieces/box
Net weight of a single machine3.37Kg
Gross weight of the whole box20.47Kg
