MAL-Z Series

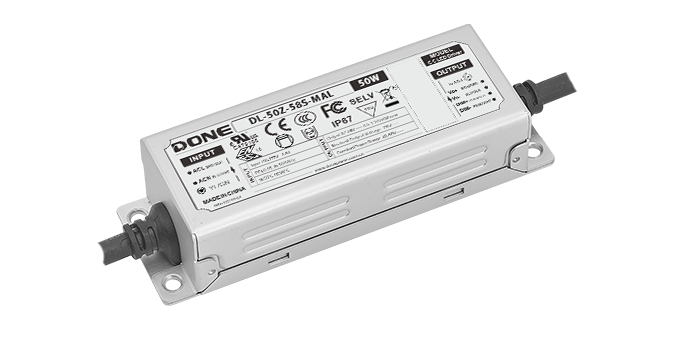

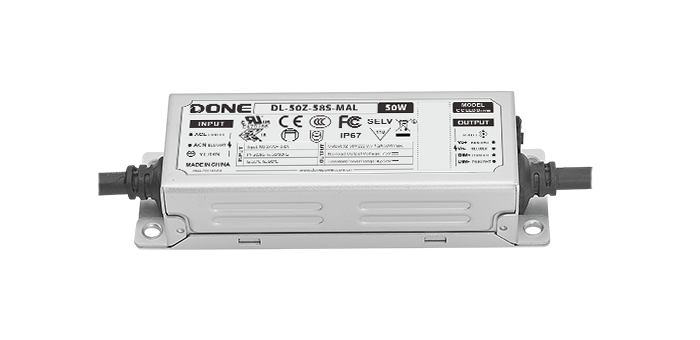

DL-50Z-MAL
Power: 50W
Series: Constant current type
Application: street lights, floodlights, stage lights, tunnel lighting, etc.
Certificates: CB, CE, CCC, SAA, ENEC, EAC, FCC, UL
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V～ 50/60Hz
Efficiency 89% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 4KV, common mode 6KV (75W and below)
Differential mode 6KV, common mode 15KV (100W and above)
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-50Z-58A-MAL | 50W | 100-277V | 32-58V | 42-58V | 0.5-1.2A | 89.0% | 0.95 | 4/6KV | 126*41*29mm |
| DL-50Z-58S-MAL | 50W | 100-277V | 32-58V | 42-58V | 0.5-1.2A | 89.0% | 0.95 | 4/6KV | 126*41*29mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H160 |
| The number of products packaged per box | 42 pieces/box |
| Net weight of single machine | 0.33Kg |
| Full container gross weight | 14.11Kg |
