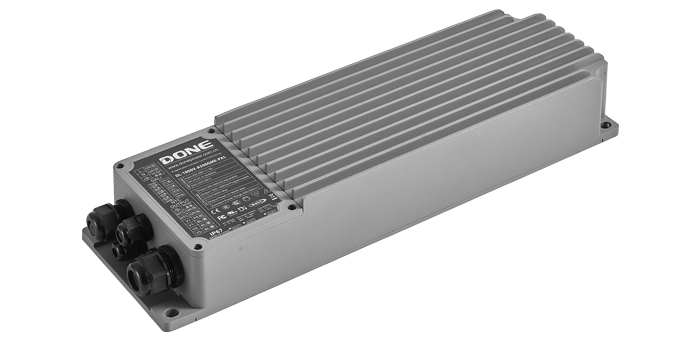

PXS-A Basic Series
DL-1200V-A-PXS
Power: 1200W
Series: Constant current type
Application: sports lighting, stadium lighting, stage lighting, etc.
Certificates: UL, CB, ENEC, CE, CCC, SAA, FCC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 200-480V～ 50/60Hz
Efficiency 96% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP66
Lightning protection level: differential mode 10kV, common mode 10kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-1200V-A500X-PXS | 1200W | 200-480V | 300-500V | 400-500V | 2.0-3.0A | 96.0% | 0.97 | 10/10KV | 400*150*80mm |
| The overall dimensions of the packaging box are (unit: mm) | L490*W365*H260 |
| The number of products packaged per box | 4 pieces/box |
| Net weight of single machine | 6.75Kg |
| Full container gross weight | 27.25Kg |
