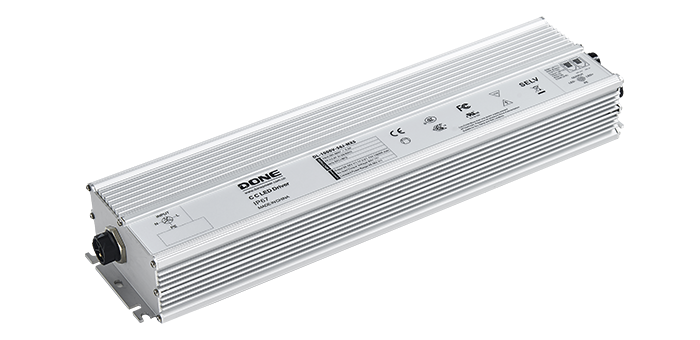

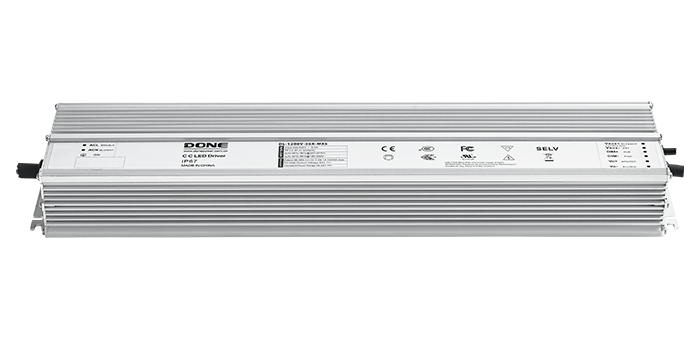

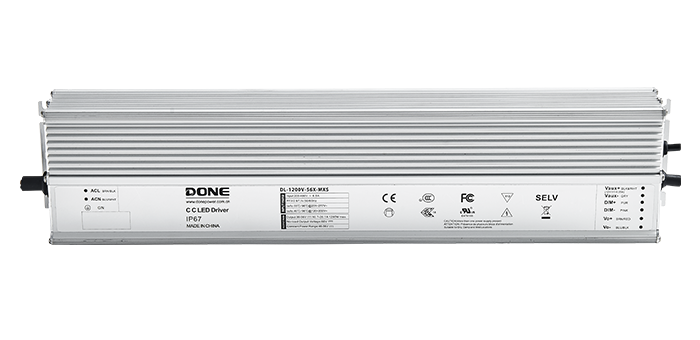

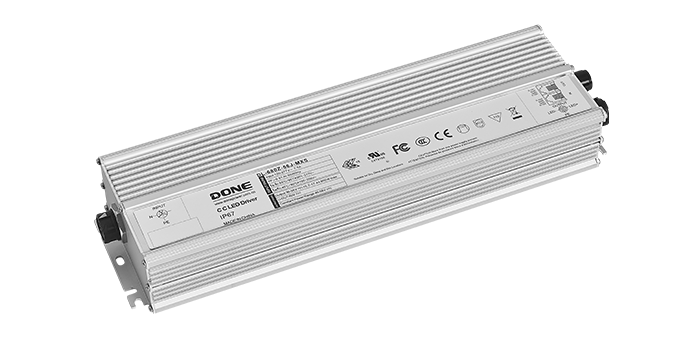

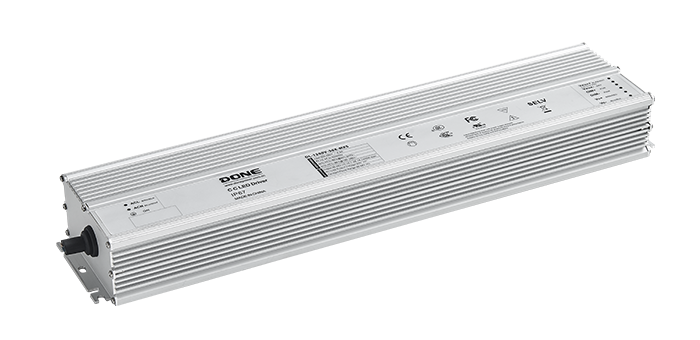

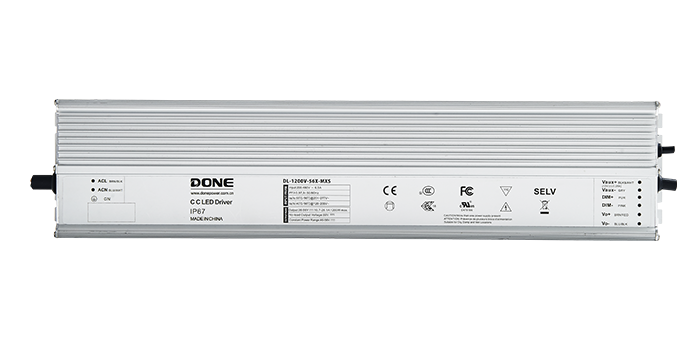

MXS-H Series

DL-1500H-MXS

Power: 1500W

Series: Constant current type

Application: Plant lighting, sports lighting, etc.

Certificate: CB, CE, CCC, ENEC, SAA, FCC, UL

Warranty: 5 years

Online Consultation

Planning Book

Class I structure

Input voltage: 200-277V～ 50/60Hz

Efficiency 97% (Typ.)

Constant power drive, constant current output control mode

Metal shell structure, protection level: IP67

Lightning protection level: differential mode 6KV, common mode 15KV

Product model	Rated power	Input voltage	Output voltage	Constant power voltage	Output current	Efficiency	PF value	Lightning protection level	Product size
DL-1500H-56X-MXS	1500W	36-56V	46-56V	22-32.6A	97.0%	0.97	6/15KV	4259045mm

The dimensions of the packing box are (unit: mm)	L475W350H205
The number of products per box	6 pieces/box
Net weight of a single machine	3.90Kg
Gross weight of the whole box	23.65Kg
