MXL-Z series

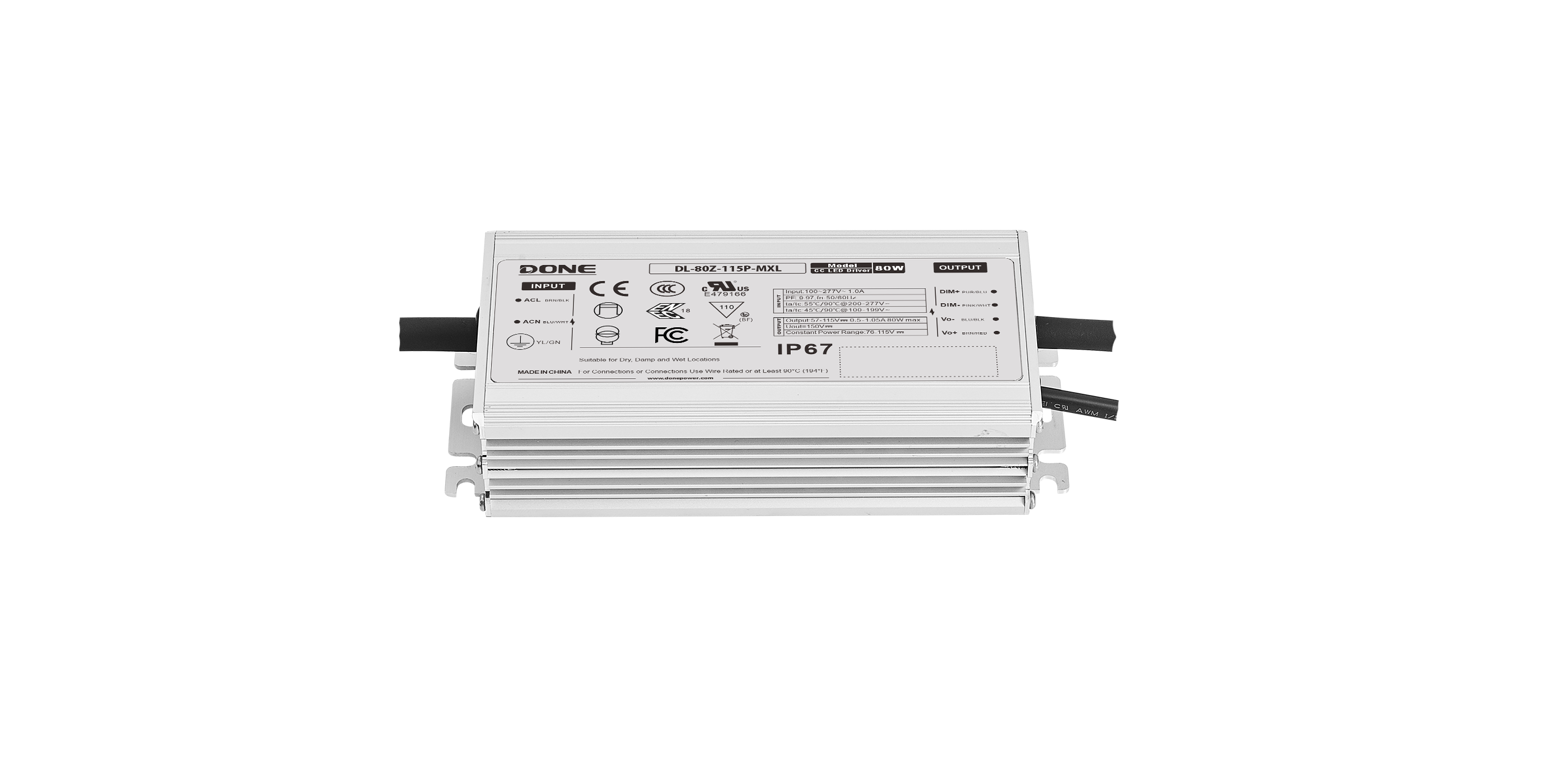

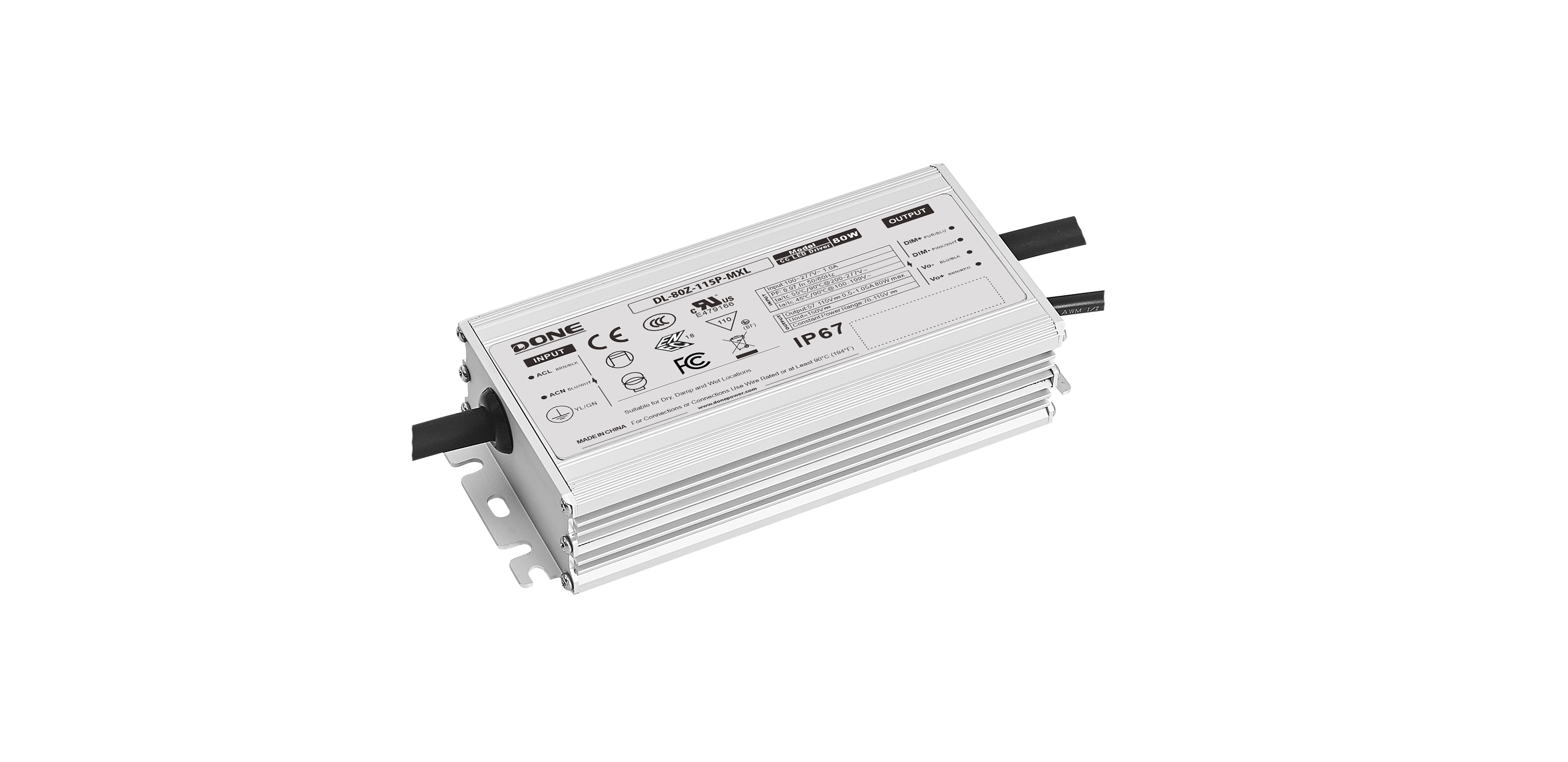

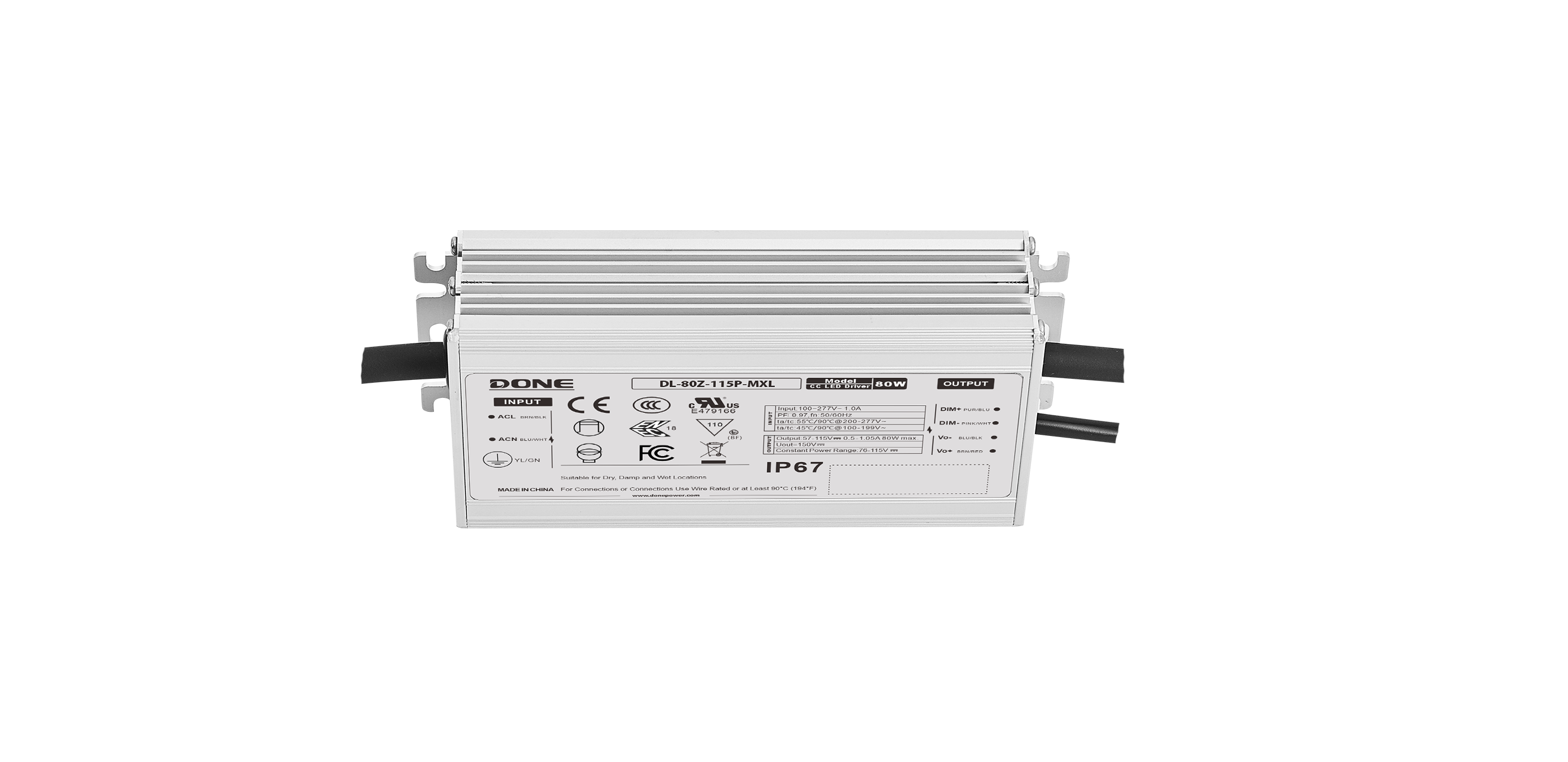

DL-80Z-MXL
Power: 80W
Series: Constant Current Type
Applications: Streetlights, floodlights, etc.
Certificates: CB, CE, CCC, SAA, ENEC, UL, FCC, EAC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I Structure
Input voltage: 100-277V ~ 50/60Hz
Efficiency 90% (Typ.)
Constant power drive, constant current output control mode
Metal casing structure, protection rating: IP67
Lightning protection rating: Differential mode 4KV, Common mode 6KV (60W and below)
Differential mode 6KV, common mode 10KV (80W and above)
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product Dimensions |
| DL-80Z-56A-MXL | 80W | 100-277V | 25-56V | 36-56V | 1.07-2.23A | 90.0% | 0.97 | 6/10KV | 120*63*33mm |
| DL-80Z-56P-MXL | 80W | 100-277V | 25-56V | 36-56V | 1.07-2.23A | 90.0% | 0.97 | 6/10KV | 120*63*33mm |
| DL-80Z-115A-MXL | 80W | 100-277V | 57-115V | 76-115V | 0.5-1.05A | 90.0% | 0.97 | 6/10KV | 120*63*33mm |
| DL-80Z-115P-MXL | 80W | 100-277V | 57-115V | 76-115V | 0.5-1.05A | 90.0% | 0.97 | 6/10KV | 120*63*33mm |
| The external dimensions of the packaging box are (unit: mm). | L475*W350*H205 |
| Quantity of products per box | 32 pieces/box |
| Single unit net weight | 0.48Kg |
| Gross weight of the whole box | 15.61Kg |
