MXL-Z Series

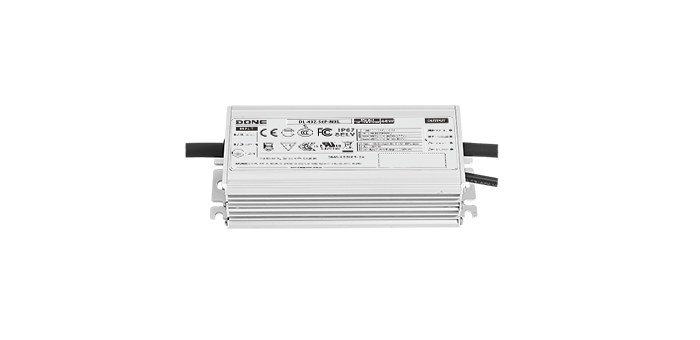

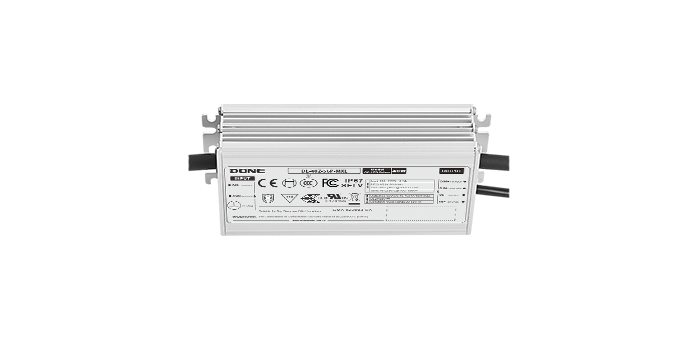

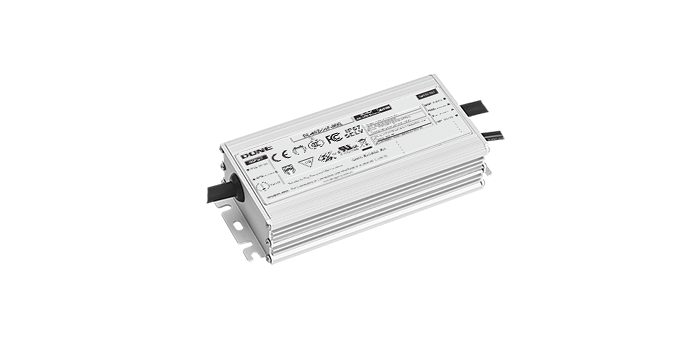

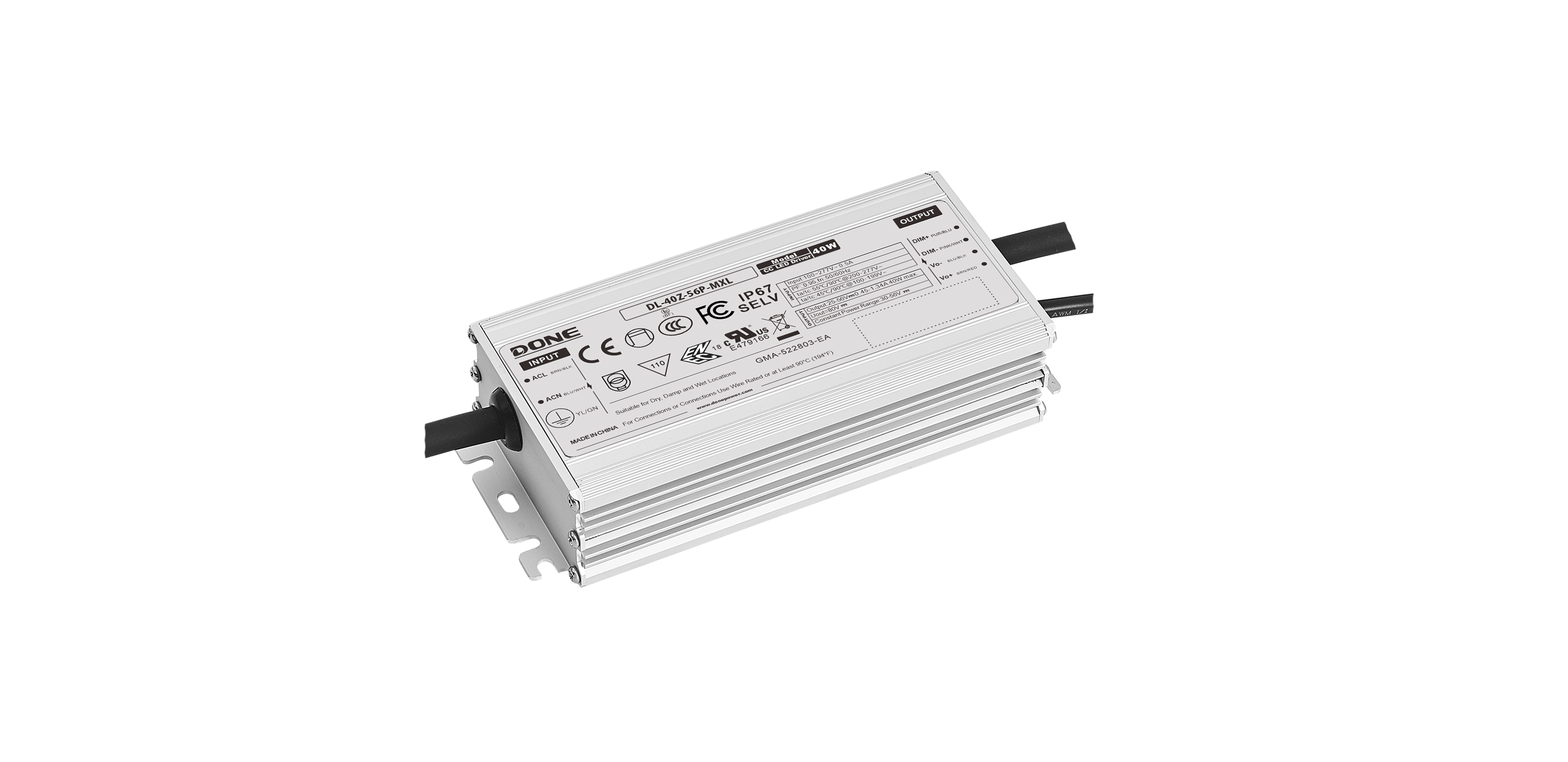

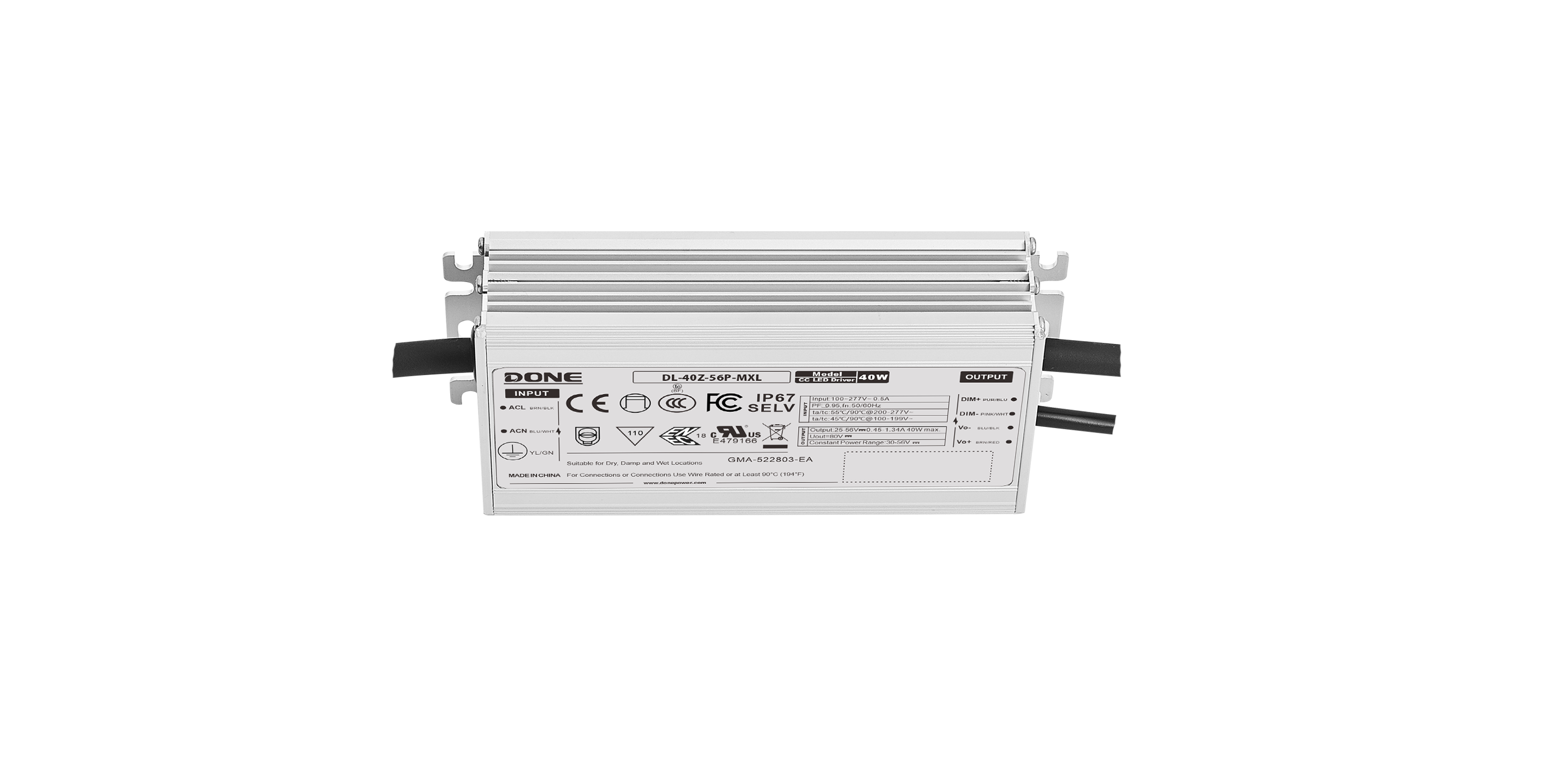

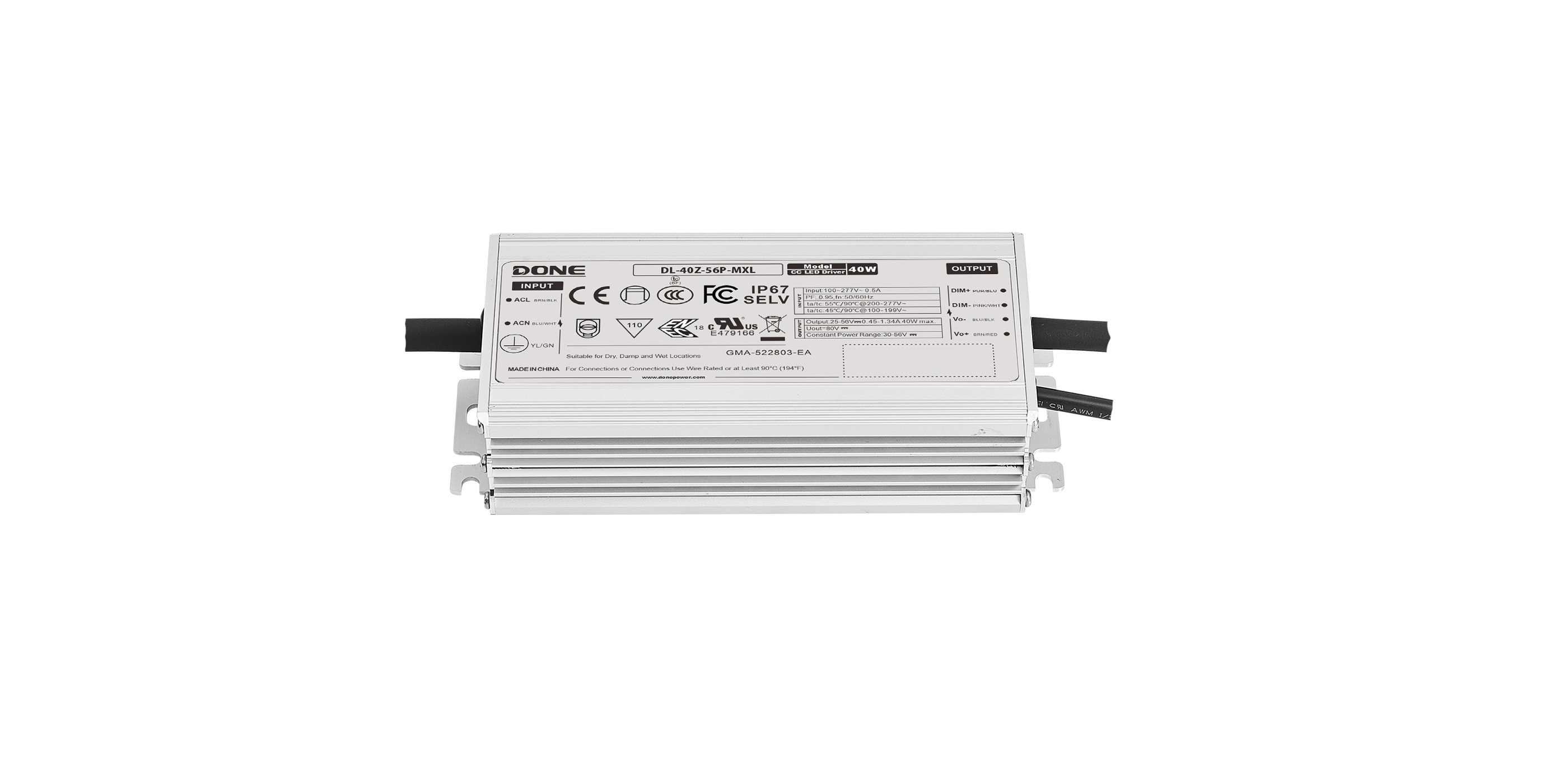

DL-40Z-MXL
Power: 40W
Series: Constant current type
Application: street lights, floodlights, etc.
Certificates: CB, CE, CCC, SAA, ENEC, UL, FCC, EAC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V ~ 50/60Hz
Efficiency 87% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 4KV, common mode 6KV (60W and below)
Differential mode 6KV, common mode 10KV (80W and above)
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-40Z-56A-MXL | 40W | 100-277V | 25-56V | 30-56V | 0.45-1.34A | 87.0% | 0.95 | 4/6KV | 105*53*33mm |
| DL-40Z-56P-MXL | 40W | 100-277V | 25-56V | 30-56V | 0.45-1.34A | 87.0% | 0.95 | 4/6KV | 105*53*33mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H205 |
| The number of products packaged per box | 32 pieces/box |
| Net weight of single machine | 0.376Kg |
| Full container gross weight | 12.28Kg |
