MXK-FP Series

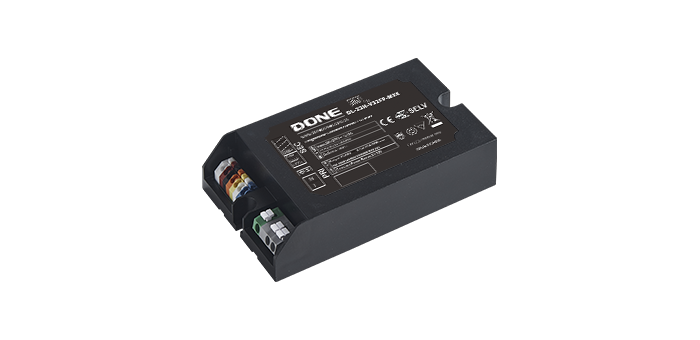

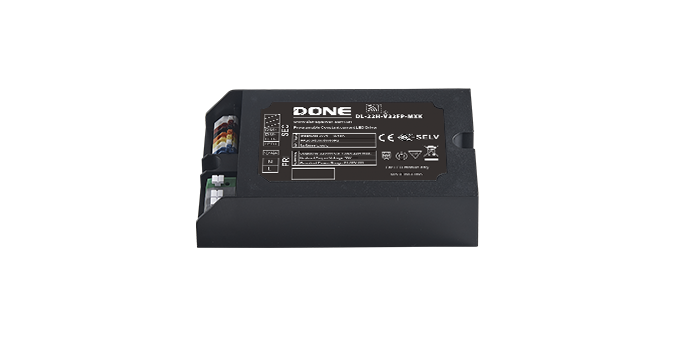

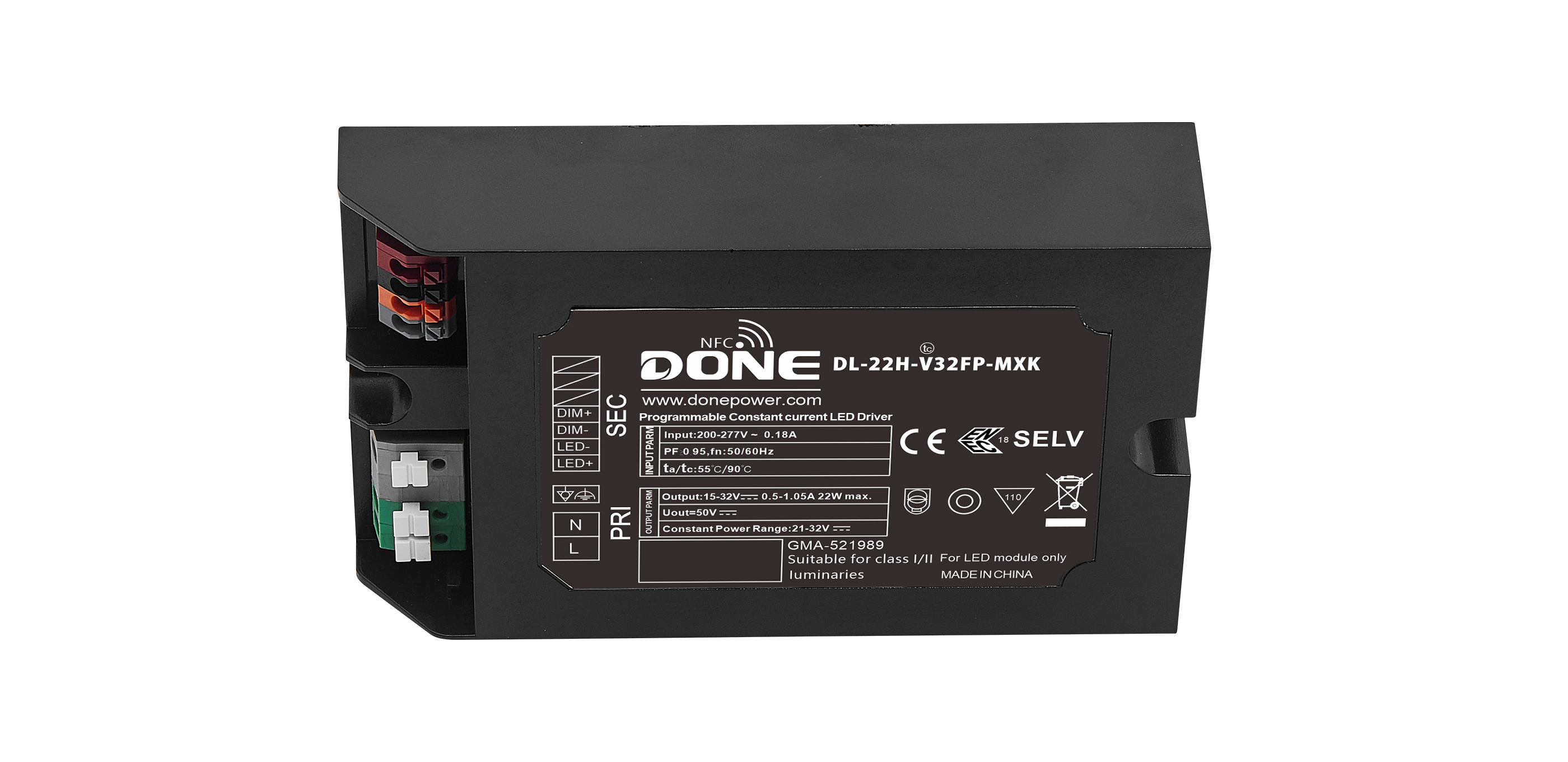

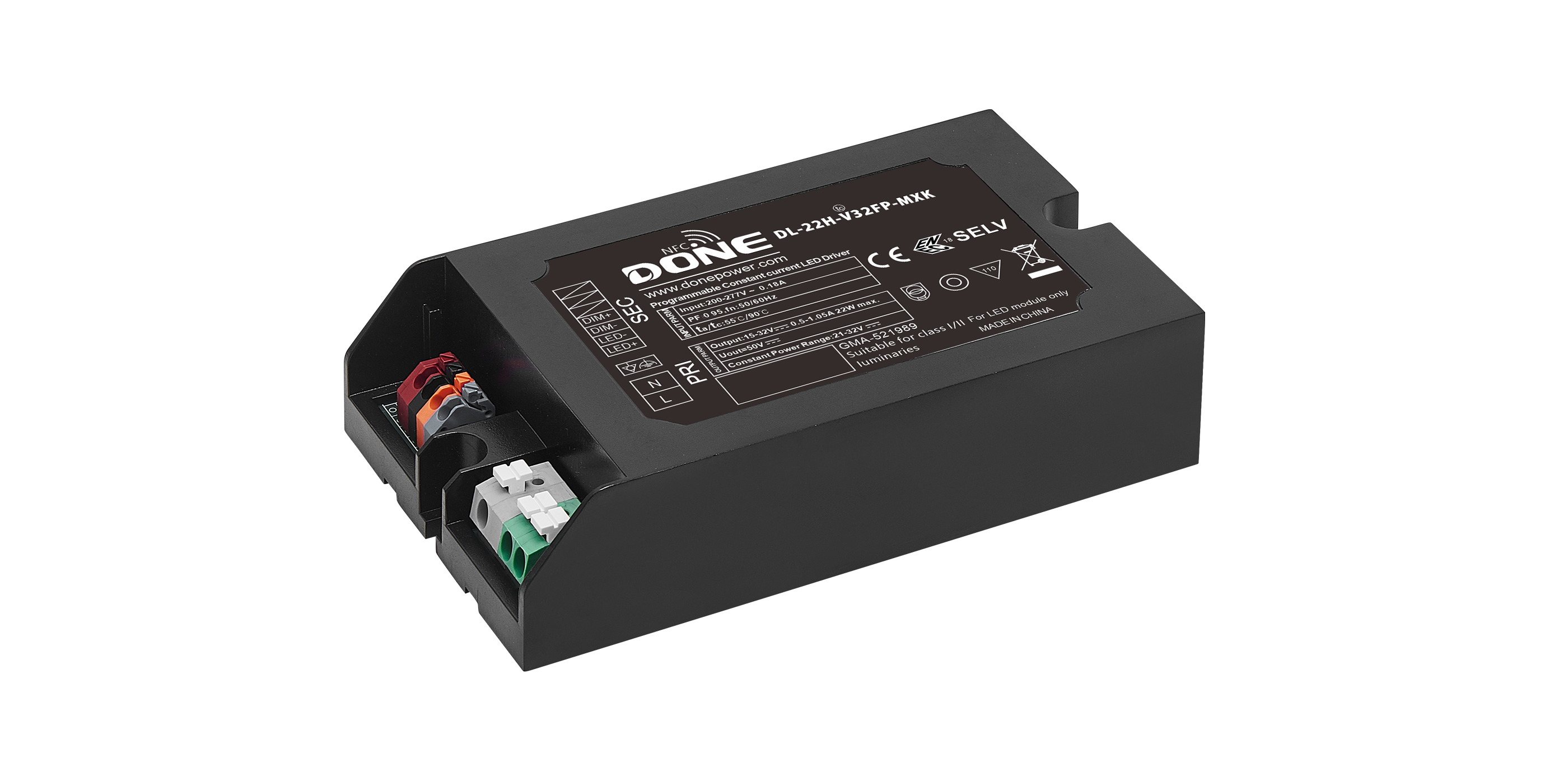

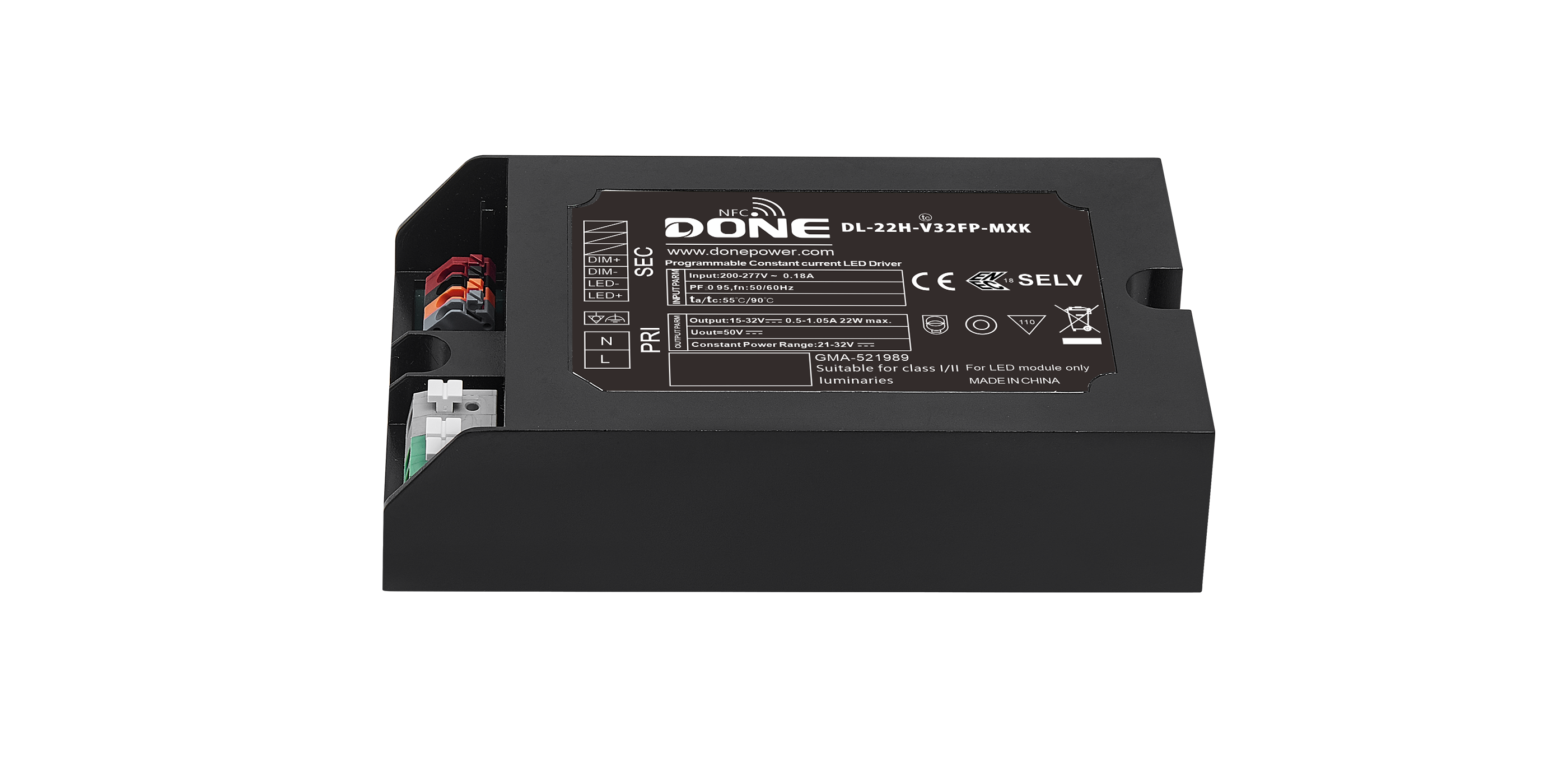

DL-22H-FP-MXK
Power: 22W
Series: Constant current type
Application: street lights, road lighting, etc.
Certificates: CB, CE, ENEC, EAC, SAA
Warranty: 5-8 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I and II compatible, built-in installation application
Input voltage: 200-277V～ 50/60Hz
Efficiency 87% (Typ.)
Constant power drive, constant current output control mode
Built-in installation application, protection level: IP20
Lightning protection level: differential mode 6kV, common mode 10kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-22H-V32FP-MXK | 22H | 200-277V | 8-32V | 21-32V | 0.5-1.05A | 87.0% | 0.95 | 6/10KV | 133*77*33mm |
| The overall dimensions of the packaging box are (unit: mm) | L330*W287*H206 |
| The number of products per box | 32 pieces/box |
| Net weight of single machine | 0.45Kg |
| Full container gross weight | 14.65Kg |
