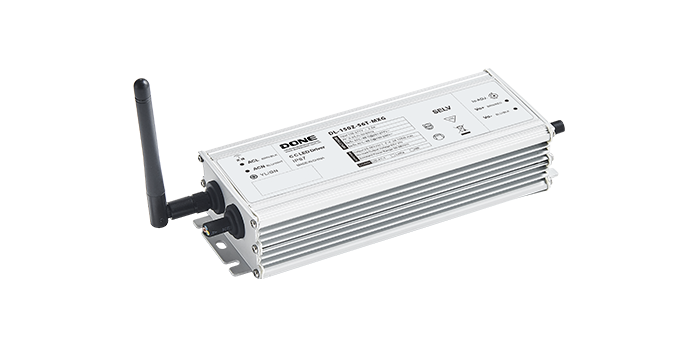

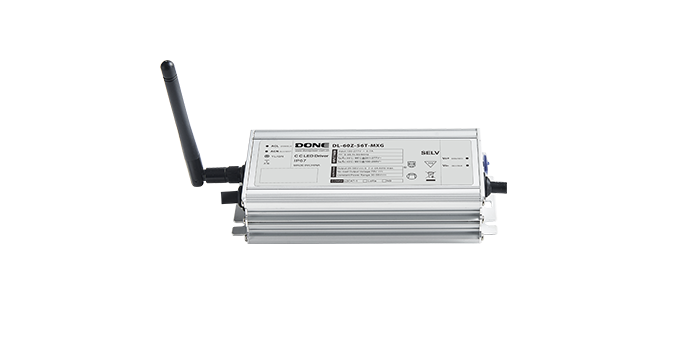

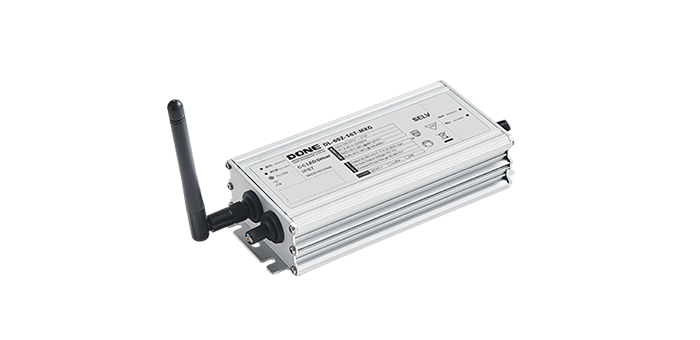

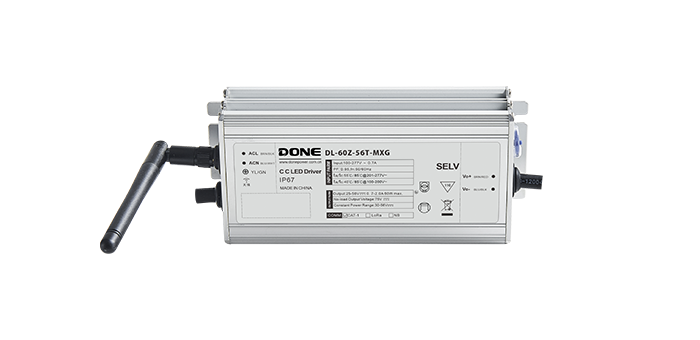

MXG-T Series
DL-75Z-T-MXG
Power: 75W
Series: Constant current type
Application: street lights, floodlights, square lighting, etc.
Certificates: CE, CB, CCC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure, integrated CAT.1 control module
Input voltage: 100-277V ~ 50/60Hz
Efficiency 89% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 6kV, common mode 10kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-75Z-56T-MXG | 75W | 100-277V | 25-56V | 36-56V | 0.85-2.1A | 89.0% | 0.95 | 6/10KV | 165*68*37mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H205 |
| The number of products packaged per box | 24 pieces/box |
| Net weight of single machine | 0.63Kg |
| Full container gross weight | 15.37Kg |
