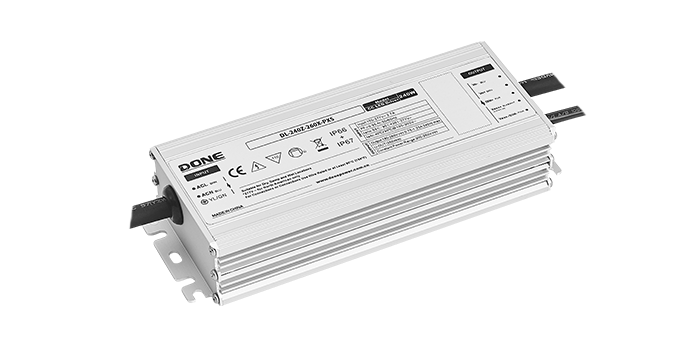

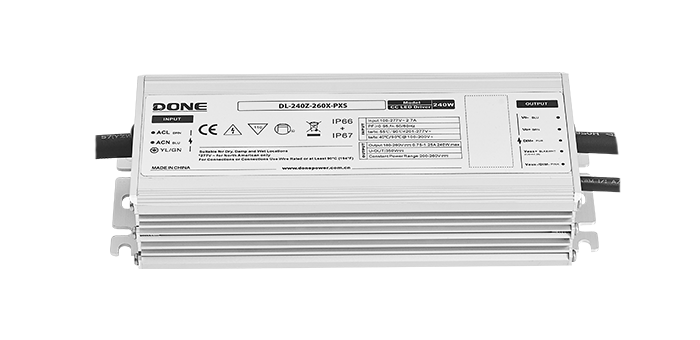

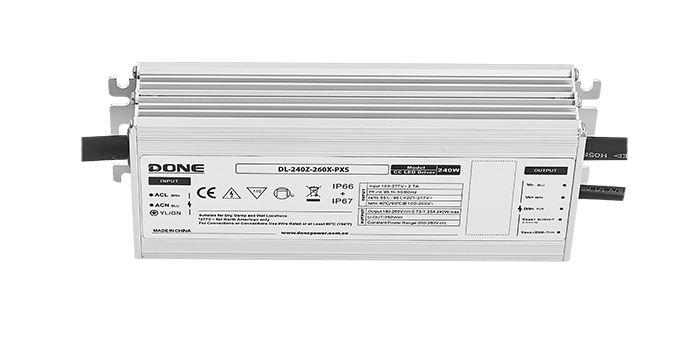

PXS-Z series
DL-240Z-PXS
Power: 240W
Series: Constant current type
Application: roads, plants, sports, lighting, etc.
Certificates: CB, CE, FCC, CCC, SAA, ENEC, UL, DALI-2
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V～ 50/60Hz
Efficiency 95% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 6KV, common mode 15KV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-240Z-260X-PXS | 240W | 100-277V | 180-260V | 200-260V | 0.75-1.2A | 95.0% | 0.95 | 6/15KV | 165*63*33mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H160 |
| The number of products packaged per box | 24 pieces/box |
| Net weight of single machine | 0.65Kg |
| Full container gross weight | 15.85Kg |
