PXS-V series

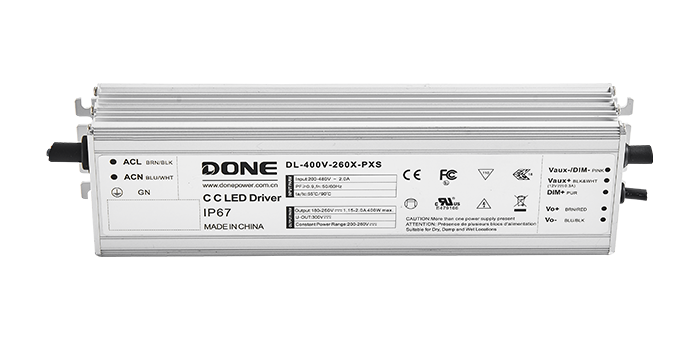

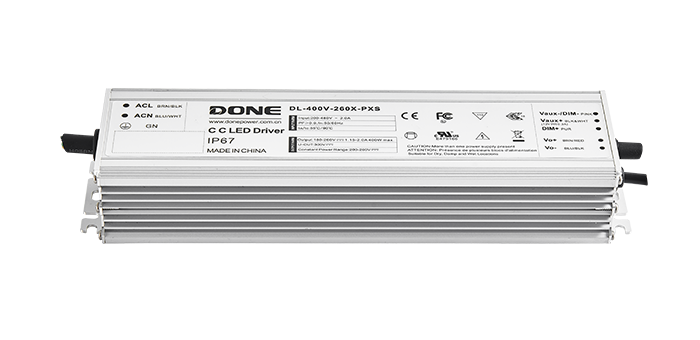

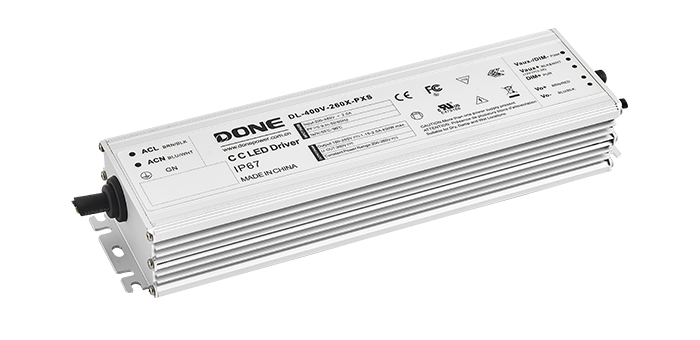

DL-400V-PXS
Power: 400W
Series: Constant Current Type
Applications: Roads, plants, sports facilities, street lighting, etc.
Certificates: UL, CB, ENEC, CE, CCC, SAA, FCC, EAC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I Class Structure
Input voltage: 200-480V～ 50/60Hz
Efficiency 96% (Typ.)
Constant power drive, constant current output control mode
Metal casing structure, protection rating: IP67
Lightning protection rating: Differential mode 6kV, Common mode 15kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product Dimensions |
| DL-400V-260X-PXS | 400W | 200-480V | 180-260V | 200-260V | 1.15-2.00A | 96.0% | 0.97 | 6/15KV | 235*63*37mm |
| DL-400V-400X-PXS | 400W | 200-480V | 180-400V | 200-400V | 1.0-2.5A | 96.0% | 0.97 | 6/15KV | 235*63*37mm |
| The external dimensions of the packaging box are (unit: mm). | L475*W350*H160 |
| Quantity of products per box | 15 pieces/box |
| Single unit net weight | 1.0Kg |
| Gross weight of the whole box | 15.25K |
