PXS-V series

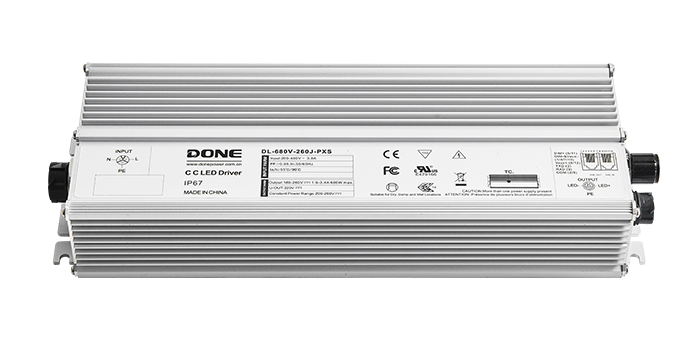

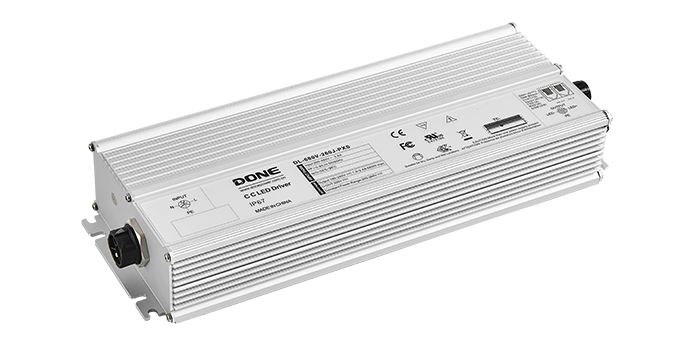

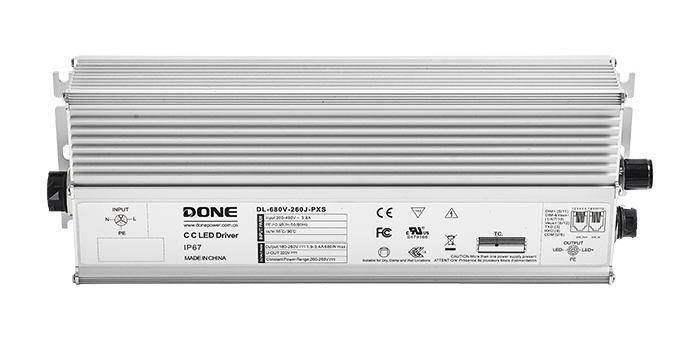

DL-680V-PXS
Power: 680W
Series: Constant current type
Application: roads, plants, sports, lighting, etc.
Certificates: UL, CB, ENEC, CE, CCC, SAA, FCC, EAC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 200-480V～ 50/60Hz
Efficiency 96% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 6kV, common mode 15kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-680V-260X-PXS | 680W | 200-480V | 180-260V | 200-260V | 1.9-3.4A | 96.0% | 0.95 | 6/15KV | 266*95*44mm |
| DL-680V-260J-PXS | 680W | 200-480V | 180-260V | 200-260V | 1.9-3.4A | 96.0% | 0.95 | 6/15KV | 266*95*44mm |
| DL-680V-400X-PXS | 680W | 200-480V | 180-400V | 200-400V | 1.4-3.4A | 96.0% | 0.95 | 6/15KV | 266*95*44mm |
| DL-680V-400J-PXS | 680W | 200-480V | 180-400V | 200-400V | 1.4-3.4A | 96.0% | 0.95 | 6/15KV | 266*95*44.5mm |
| The overall dimensions of the packaging box are (unit: mm) | L435*W350*H205 |
| The number of products packaged per box | 6 pieces/box |
| Net weight of single machine | 2.55Kg |
| Full container gross weight | 11.55K |
