PXS-V series

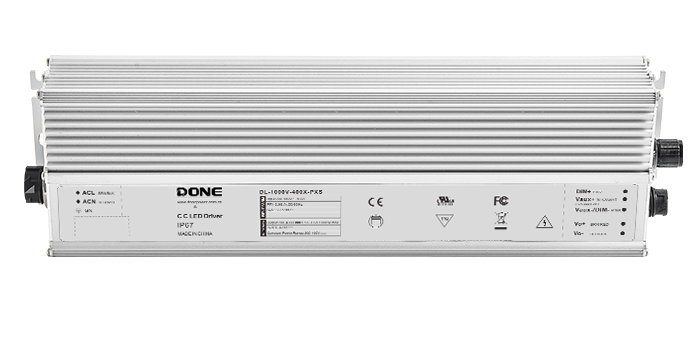

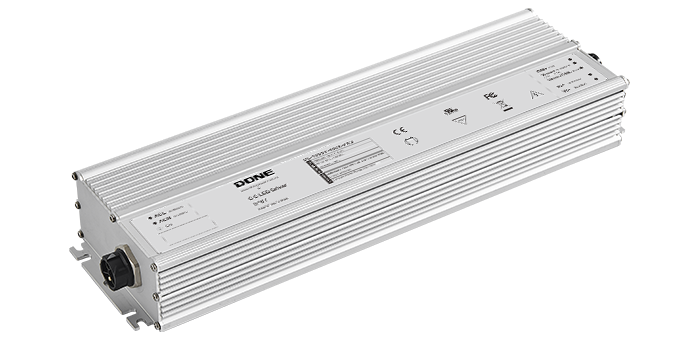

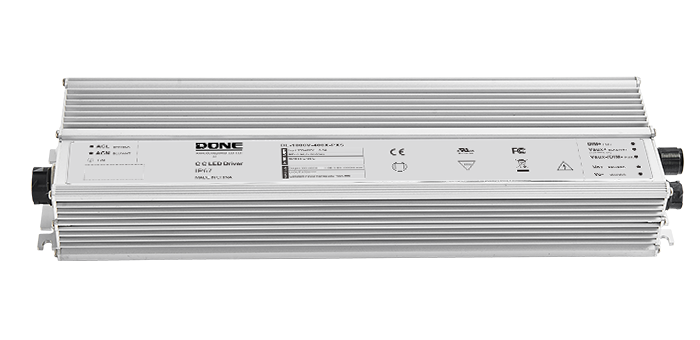

DL-1000V-PXS
Power: 1000W
Series: Constant current type
Application: roads, plants, sports, lighting, etc.
Certificates: UL, CB, ENEC, CE, CCC, SAA, FCC, EAC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 200-480V～ 50/60Hz
Efficiency 96% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 6kV, common mode 10kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-1000V-400X-PXS | 1000W | 200-480V | 180-400V | 200-400V | 1.95-3.5A | 96.0% | 0.96 | 6/10KV | 335*90*48mm |
| DL-1000V-400J-PXS | 1000W | 200-480V | 180-400V | 200-400V | 1.95-3.5A | 96.0% | 0.96 | 6/10KV | 345*90*48mm |
| The overall dimensions of the packaging box are (unit: mm) | L435*W350*H205 |
| The number of products per box | 6 pieces/box |
| Net weight of single machine | 2.81Kg |
| Full container gross weight | 17.11Kg |
