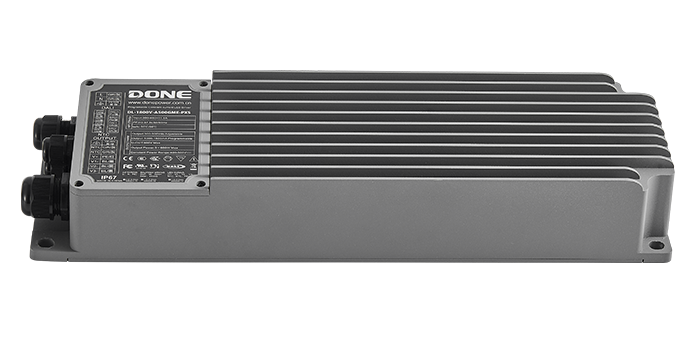

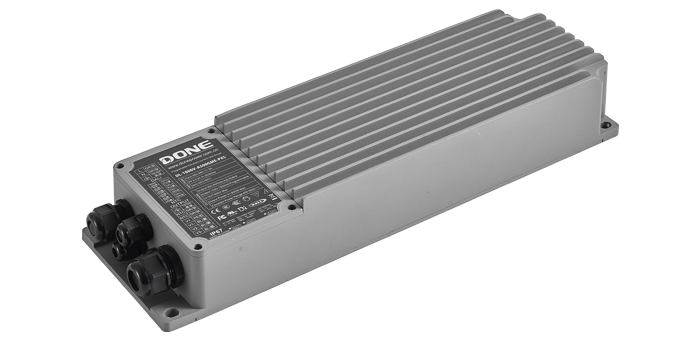

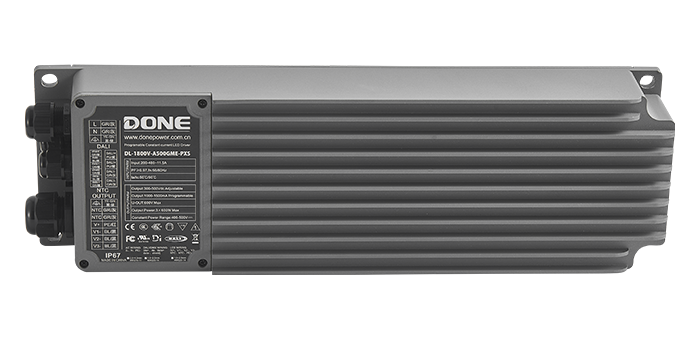

PXS-A Basic Series
DL-1500V-A-PXS
Power: 1500W
Series: Constant Current Type
Applications: Sports lighting, stadium lighting, stage lighting, etc.
Certificates: UL, CB, ENEC, CE, CCC, SAA, FCC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I Class Structure
Input voltage: 200-480V～ 50/60Hz
Efficiency 97% (Typ.)
Constant power drive, constant current output control mode
Metal casing structure, protection rating: IP66
Lightning protection rating: Differential mode 10kV, Common mode 10kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product Dimensions |
| DL-1500V-A500X-PXS | 1500W | 200-480V | 300-500V | 400-500V | 2.4-3.75A | 97.0% | 0.97 | 10/10KV | 500*150*80mm |
| The external dimensions of the packaging box are (unit: mm). | / |
| Quantity of products per box | / |
| Single unit net weight | 6.75Kg |
| Gross weight of the whole box | / |
