PLS Basic Series

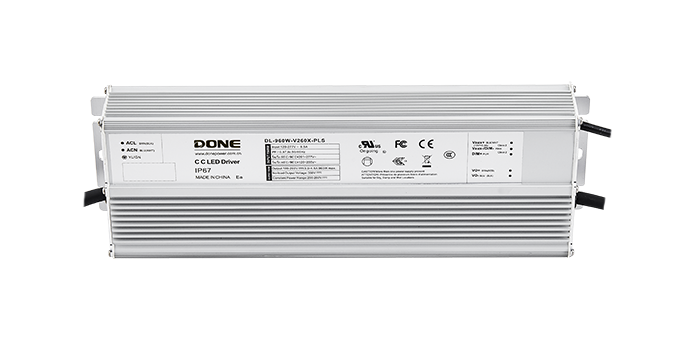

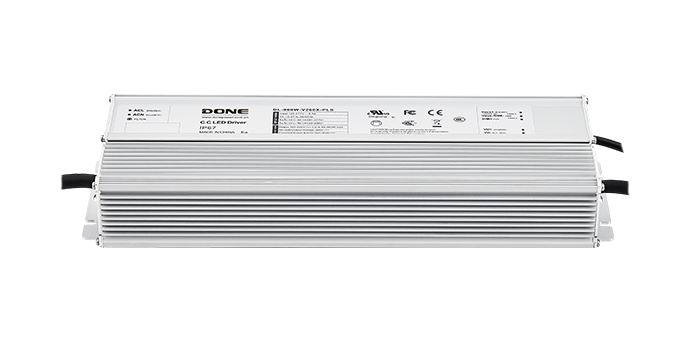

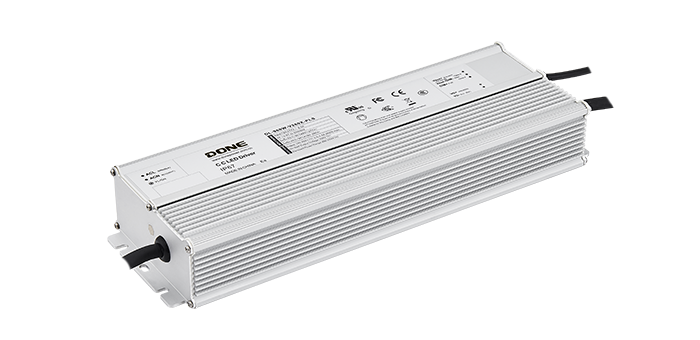

DL-960W-PLS
Power: 960W
Series: Constant current type
Application: roads, plants, sports, lighting, etc.
Certificates: UL, CB, ENEC, CE, CCC, SAA
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 200-480V～ 50/60Hz
Efficiency 96% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 6kV, common mode 15kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-960W-V260X-PLS | 960W | 120-277V | 180-260V | 200-260V | 3.0-4.8A | 97% | 0.97 | 6/15KV | 316*95*44mm |
| DL-960W-V260J-PLS | 960W | 120-277V | 180-260V | 200-260V | 3.0-4.8A | 97% | 0.97 | 6/15KV | 326*95*44mm |
| The overall dimensions of the packaging box are (unit: mm) | L435*W350*H205 |
| The number of products packaged per box | 6 pieces/box |
| Net weight of single machine | 2.55Kg |
| Full container gross weight | 15.55Kg |
