MXK-GX series

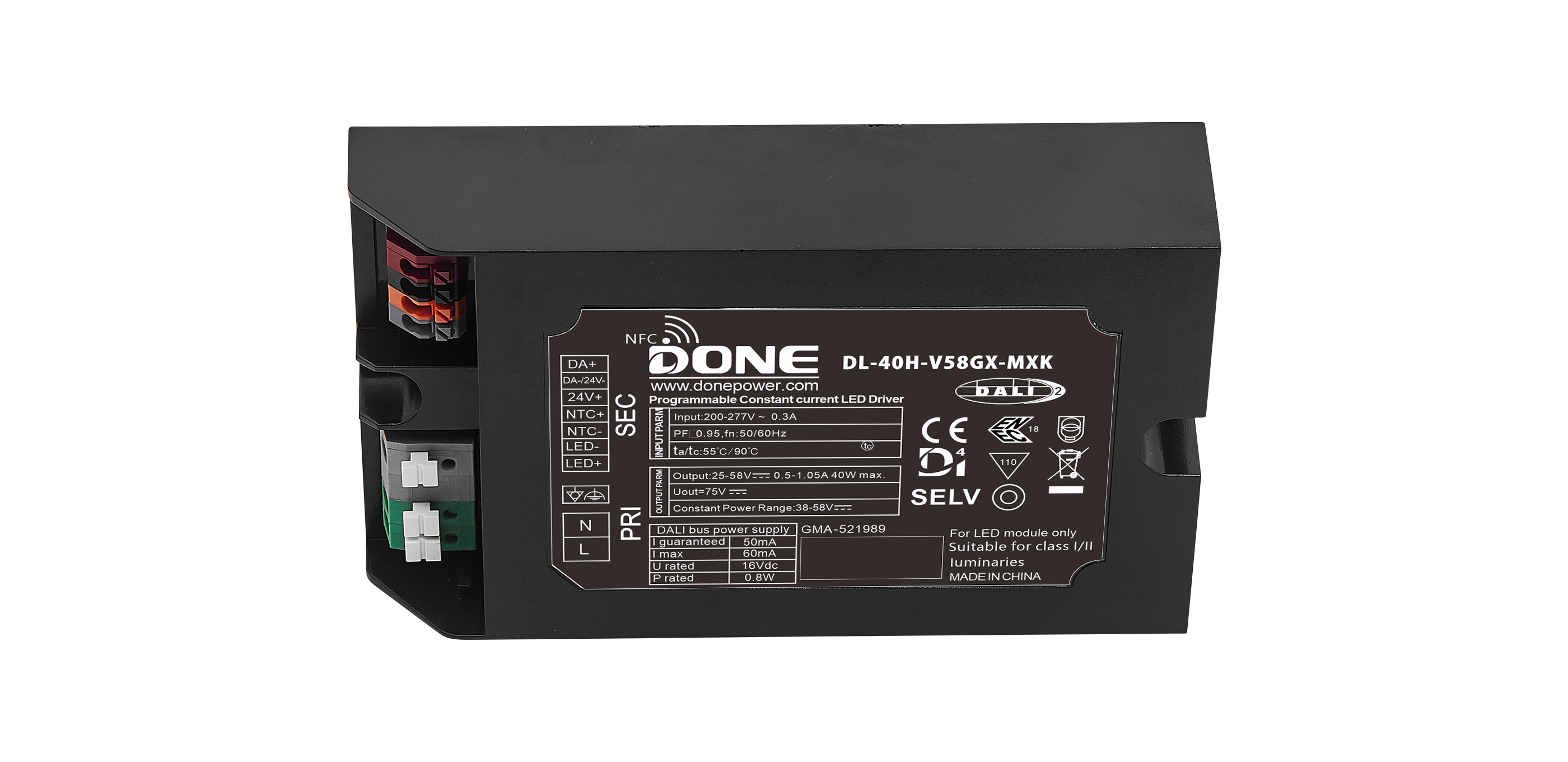

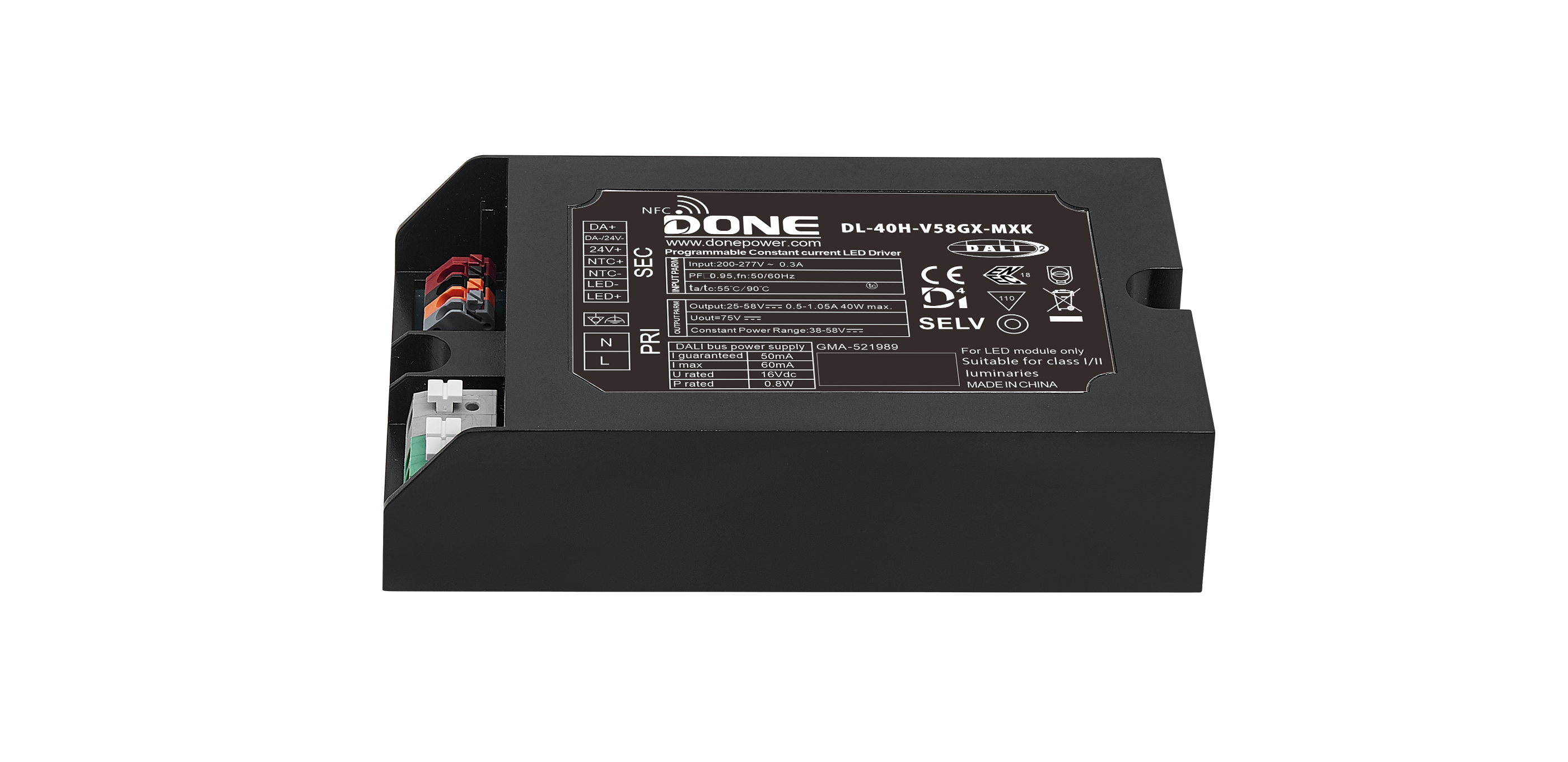

DL-40H-GX-MXK
Power: 40W
Series: Constant Current Type
Applications: Streetlights, road lighting, etc.
Certificates: CB, CE, ENEC, SAA, DALI-2, D4i
Warranty: 5-8 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I and II compatible, built-in application installation.
Input voltage: 200-277V～ 50/60Hz
Efficiency 87% (Typ.)
Built-in installation application, protection rating: IP20
Lightning protection rating: Differential mode 6kV, Common mode 10kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product Dimensions |
| DL-40H-V58GX-MXK | 40W | 200-277V | 25-58V | 38-58V | 0.5-1.05A | 87.0% | 0.97 | 6/10KV | 133*77*33mm |
| The external dimensions of the packaging box are (unit: mm). | L330*W287*H206 |
| Quantity of products per box | 32 pieces/box |
| Single unit net weight | 0.46Kg |
| Gross weight of the whole box | 14.97Kg |
