MXK-FP series

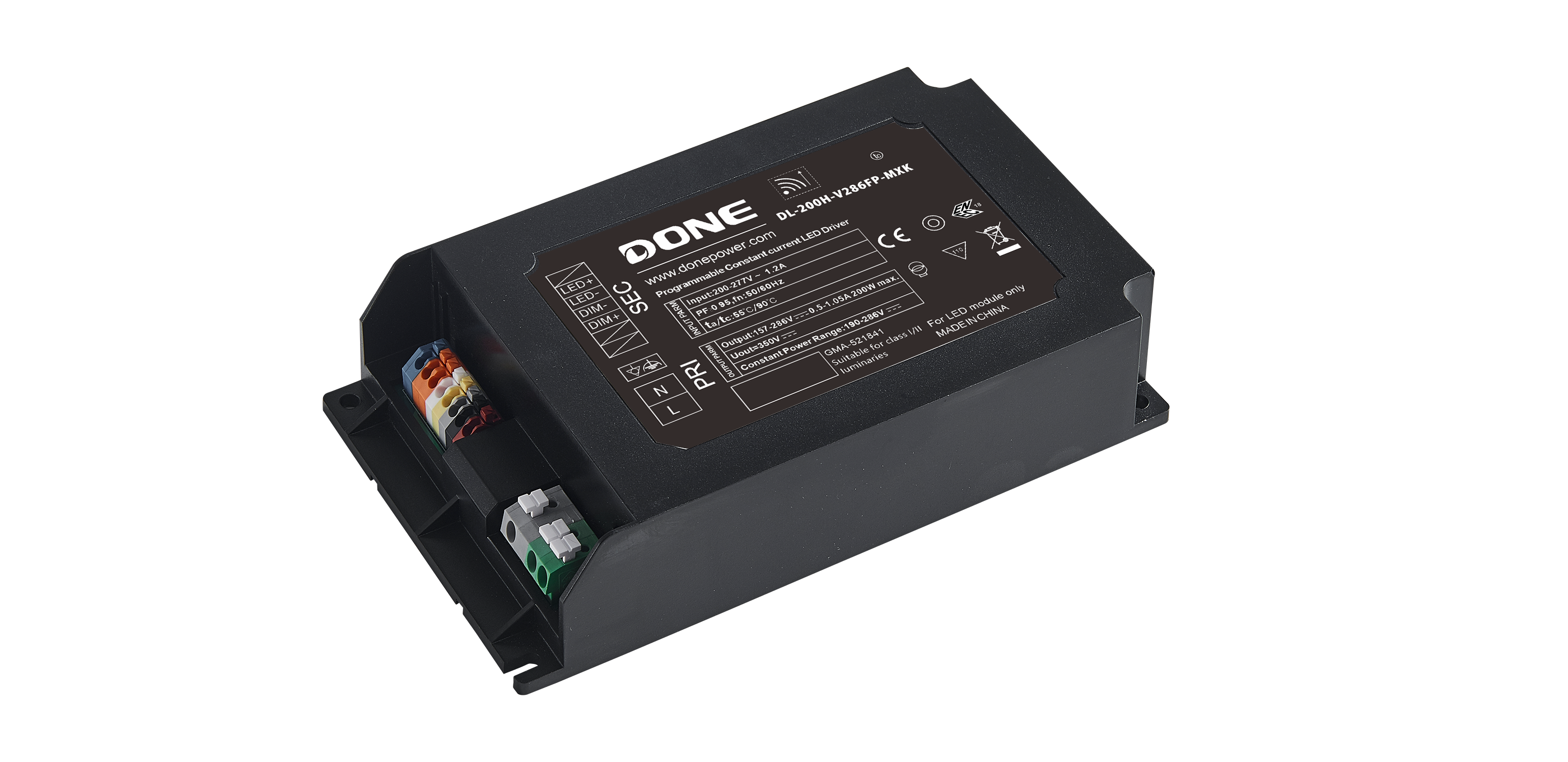

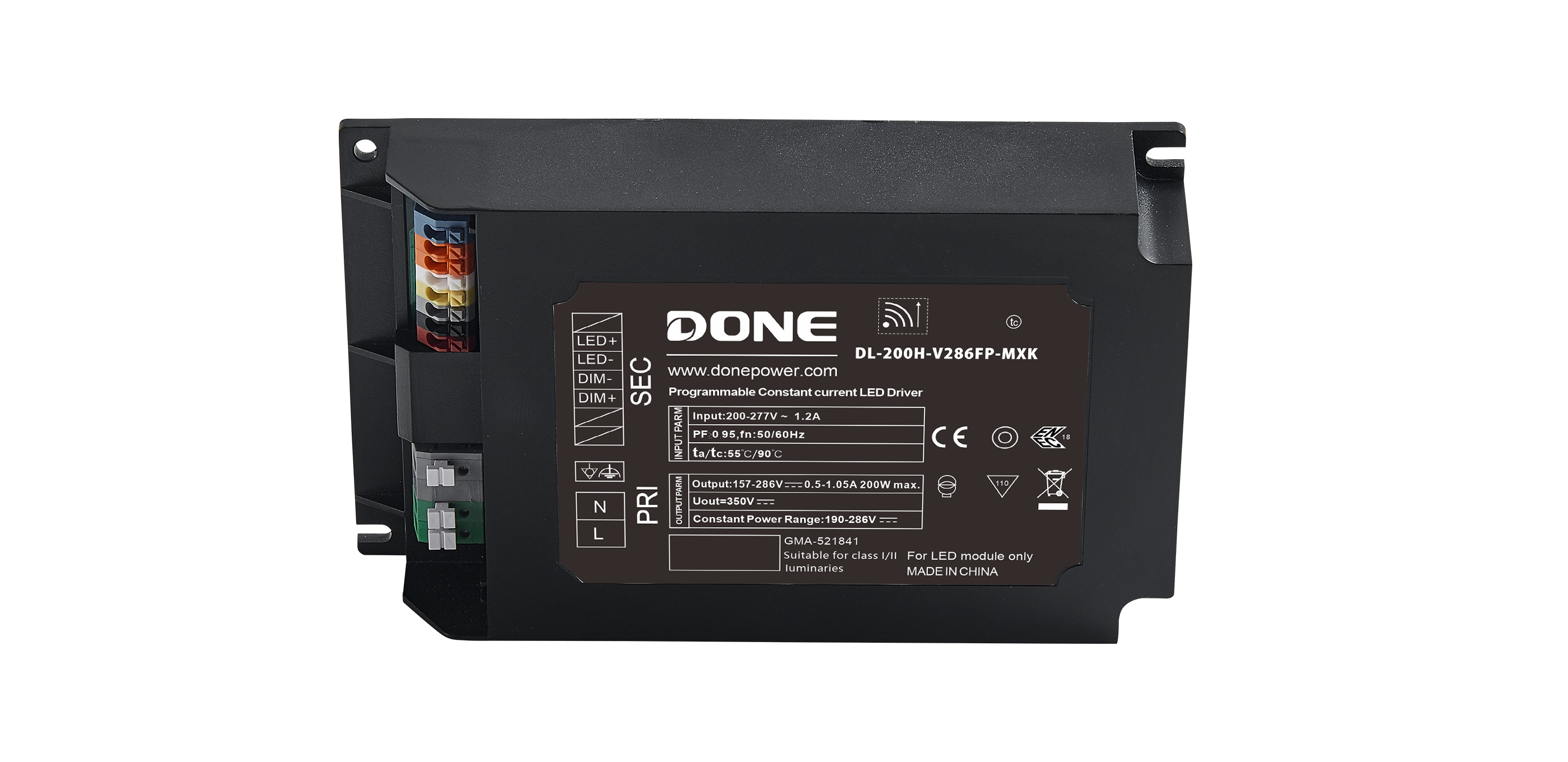

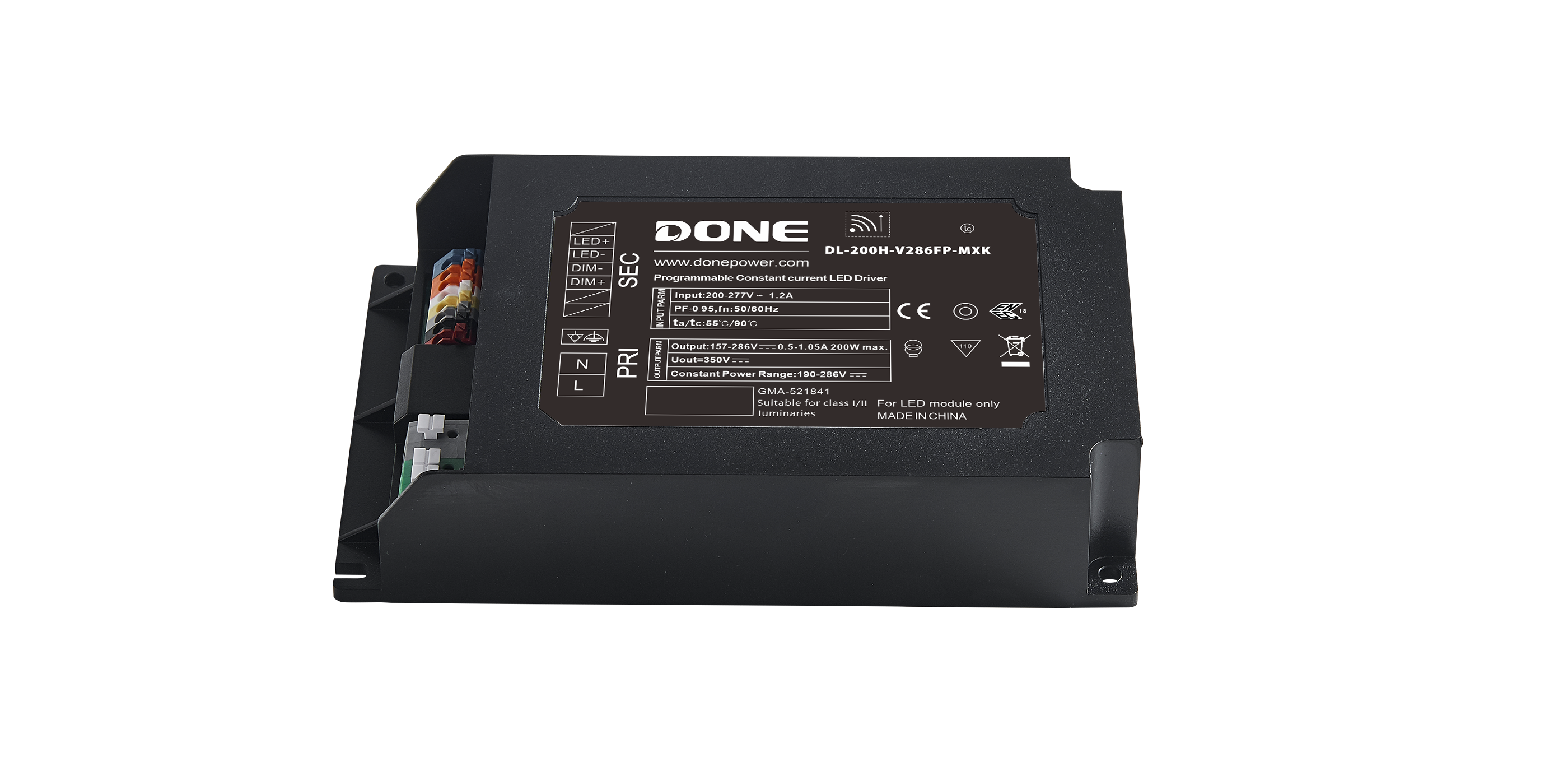

DL-200H-FP-MXK
Power: 200W
Series: Constant Current Type
Applications: Streetlights, road lighting, etc.
Certificates: CB, CE, ENEC, SAA
Warranty: 5-8 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I and II compatible, built-in application installation.
Input voltage: 200-277V～ 50/60Hz
Efficiency 93.5% (Typ.)
Constant power drive, constant current output control mode
Built-in installation application, protection rating: IP20
Lightning protection rating: Differential mode 6kV, Common mode 10kV
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product Dimensions |
| DL-200H-V286FP-MXK | 200H | 200-277V | 157-286V | 190-286V | 0.5-1.05A | 93.5% | 0.95 | 6/10KV | 171*101*39mm |
| The external dimensions of the packaging box are (unit: mm). | L370*W220*H240 |
| Quantity of products per box | 20 pieces/box |
| Single unit net weight | 0.78Kg |
| Gross weight of the whole box | 15.85Kg |
