MXC Basic Series

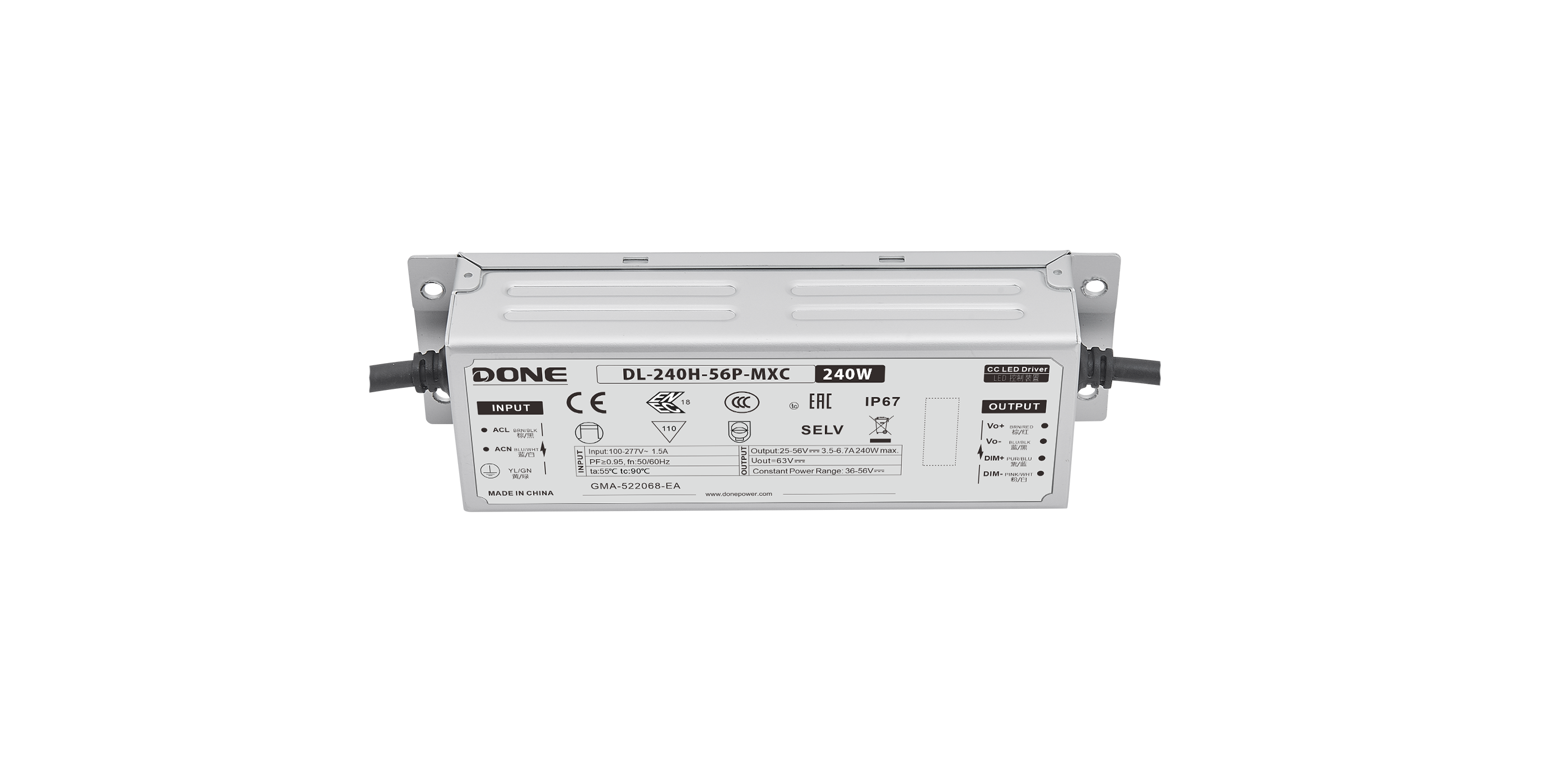

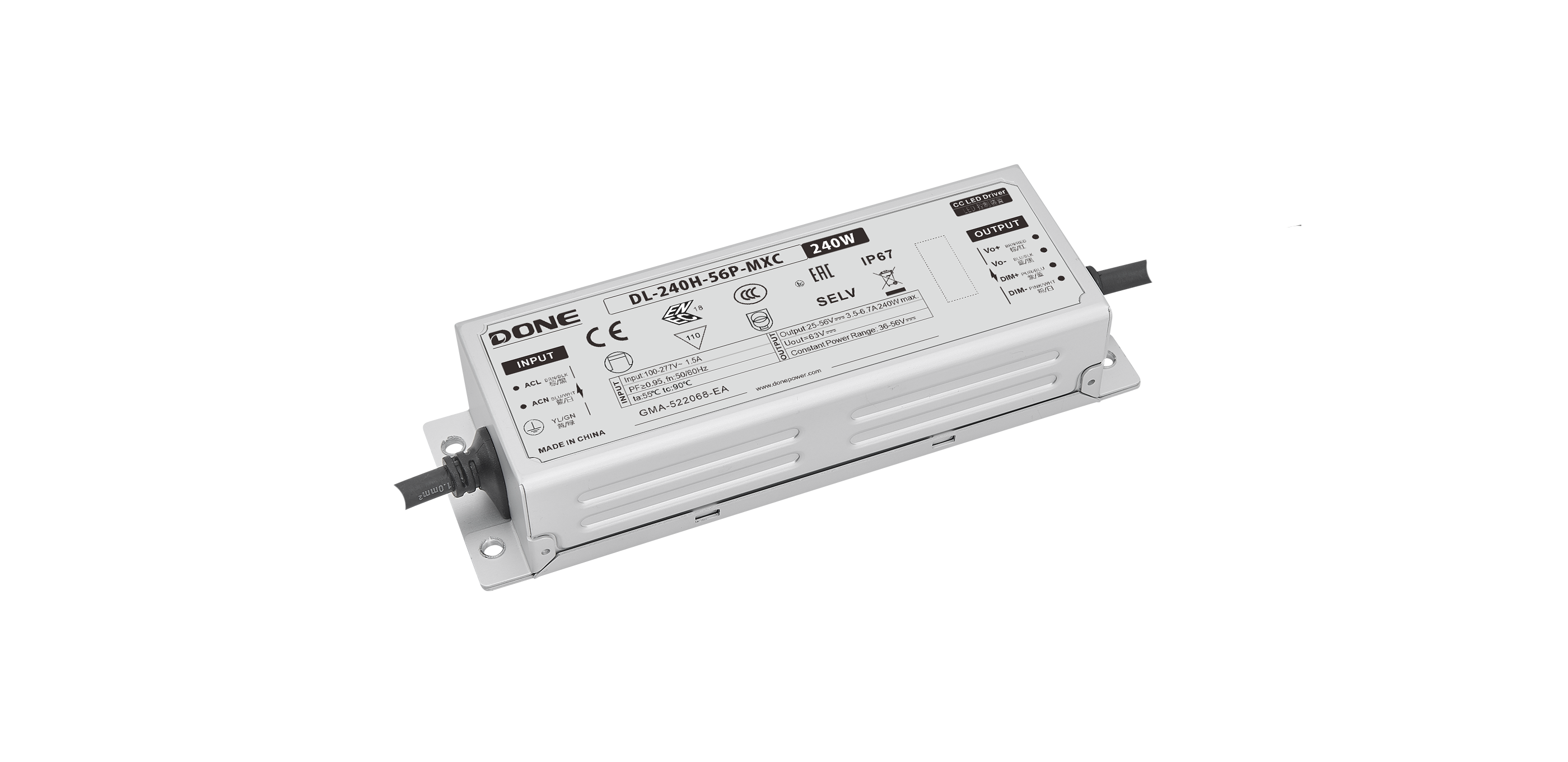

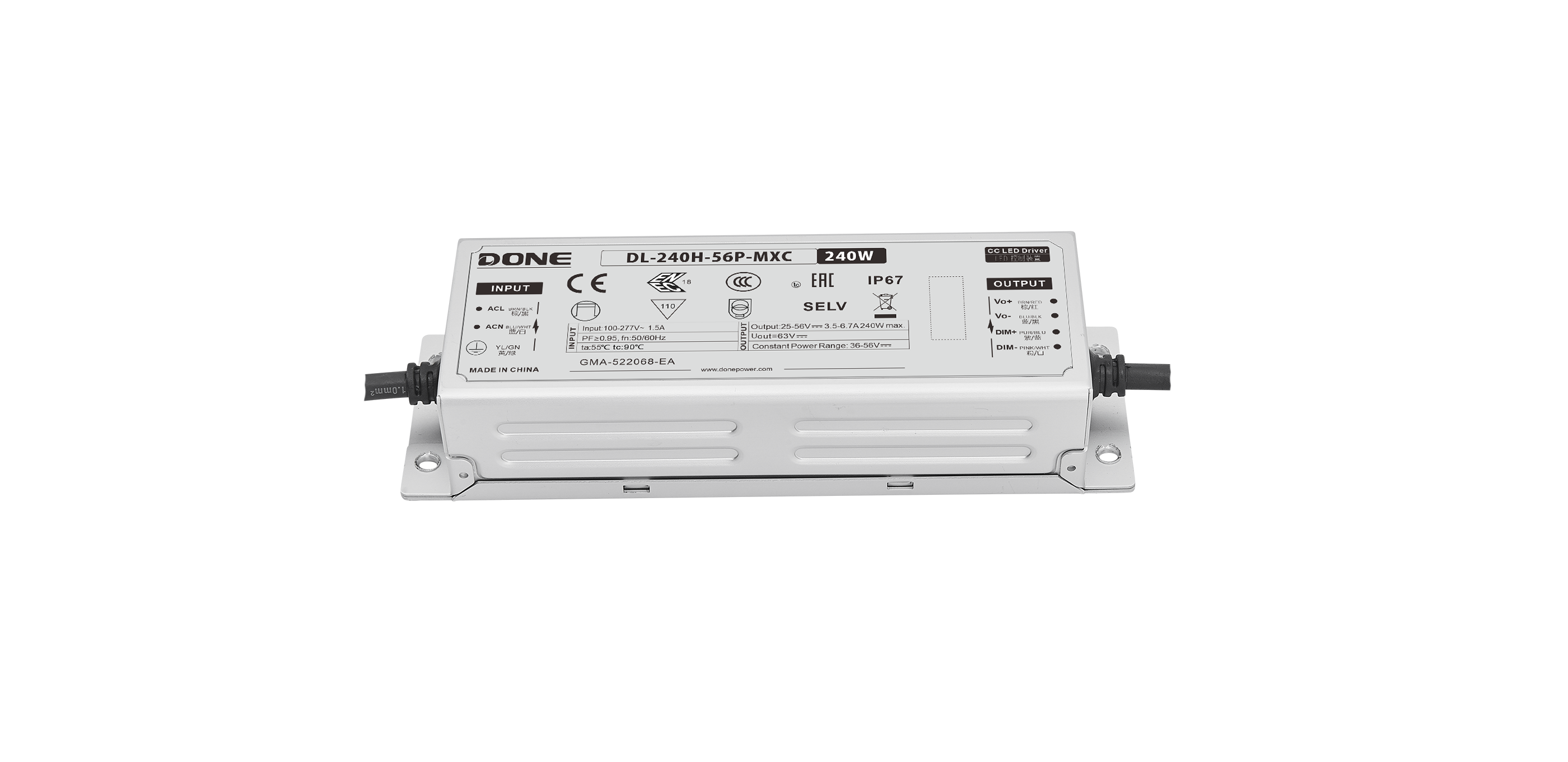

DL-240H-MXC
Power: 240W
Series: Constant current type
Application: street lights, square lighting, etc.
Certificates: CB, CE, CCC, ENEC, SAA, EAC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V～ 50/60Hz
Efficiency 93% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 4KV, common mode 6KV (50W and below)
Differential mode 6KV, common mode 10KV (60W and above)
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-240H-56A-MXC | 240W | 100-277V | 25-56V | 36-56V | 3.5-6.7A | 93.0% | 0.95 | 6/15KV | 186*60*38mm |
| DL-240H-56P-MXC | 240W | 100-277V | 25-56V | 36-56V | 3.5-6.7A | 93.0% | 0.95 | 6/15KV | 186*60*38mm |
| DL-240H-343A-MXC | 240W | 100-277V | 171-343V | 228-343V | 0.5-1.05A | 93.0% | 0.95 | 6/15KV | 186*60*38mm |
| DL-240H-343P-MXC | 240W | 100-277V | 171-343V | 228-343V | 0.5-1.05A | 93.0% | 0.95 | 6/15KV | 186*60*38mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H160 |
| The number of products per box | 18 pieces/box |
| Net weight of single machine | 0.78Kg |
| Full container gross weight | 14.29Kg |
