MXC Basic Series

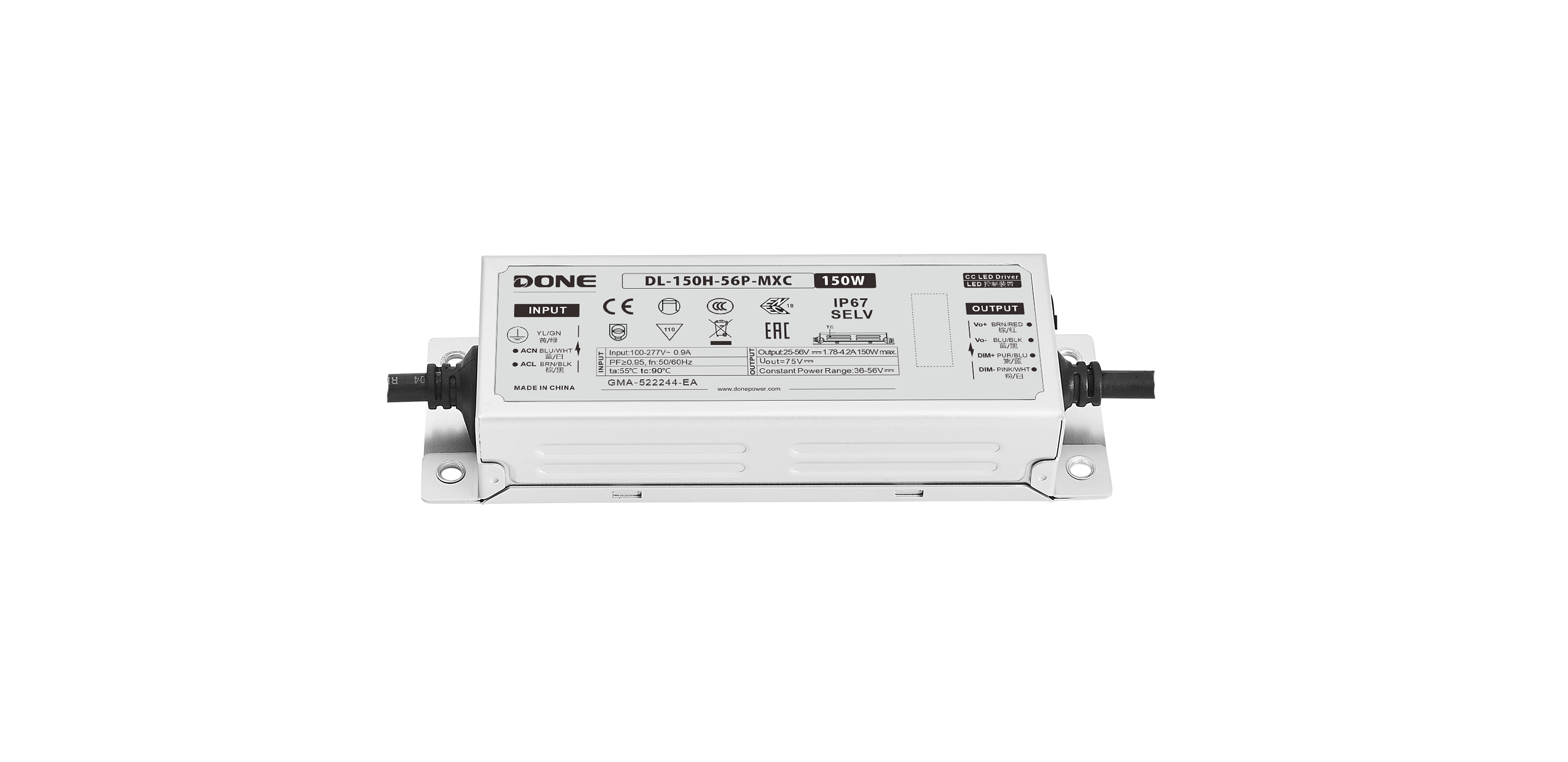

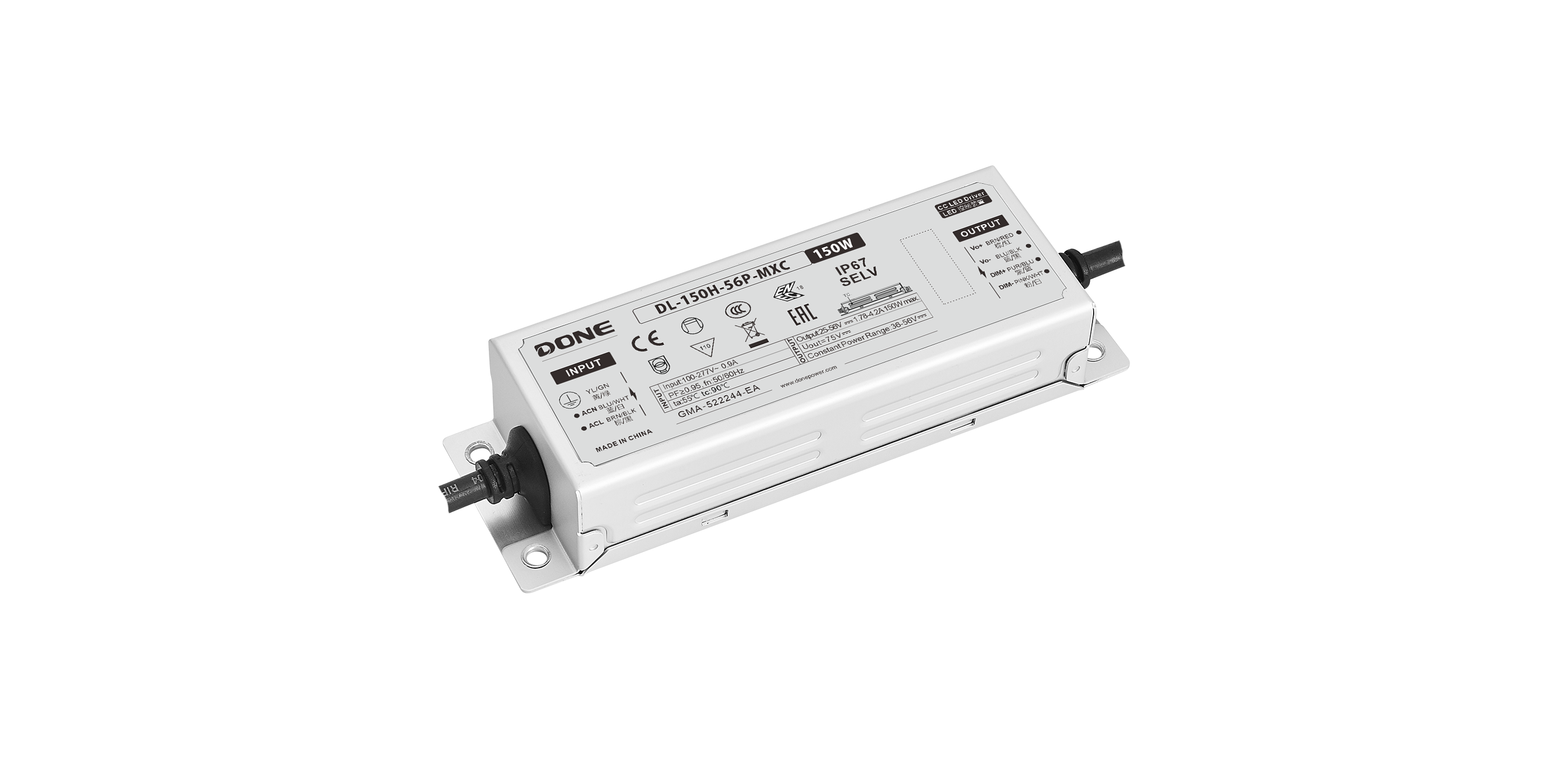

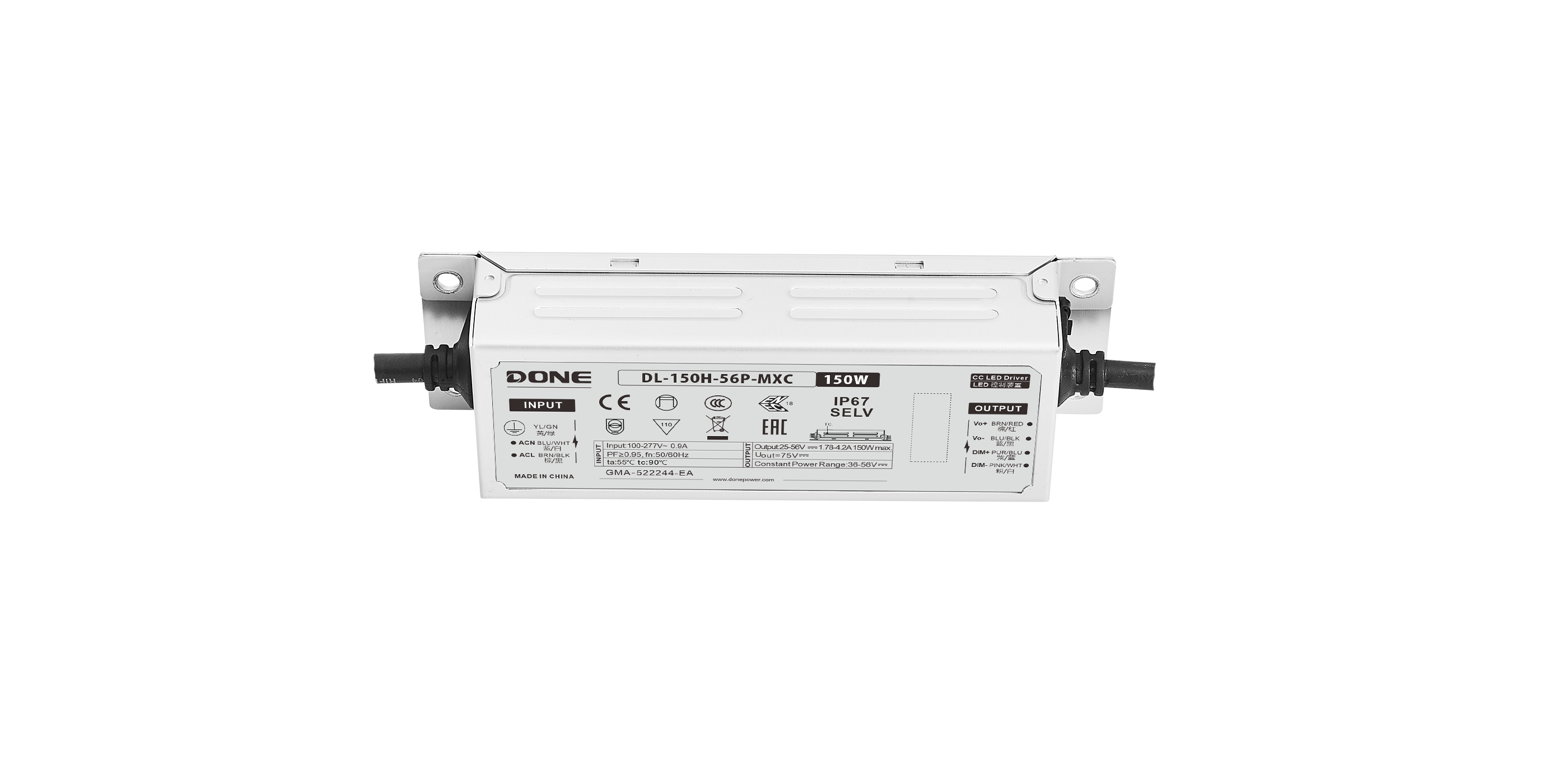

DL-150H-MXC
Power: 150W
Series: Constant current type
Application: street lights, square lighting, etc.
Certificates: CB, CE, CCC, ENEC, SAA, EAC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V～ 50/60Hz
Efficiency 90% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 4KV, common mode 6KV (50W and below)
Differential mode 6KV, common mode 10KV (60W and above)
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-150H-56A-MXC | 150W | 100-277V | 25-56V | 36-56V | 1.78-4.2A | 90.0% | 0.95 | 6/15KV | 164*53*32.5mm |
| DL-150H-56P-MXC | 150W | 100-277V | 25-56V | 36-56V | 1.78-4.2A | 90.0% | 0.95 | 6/15KV | 164*53*32.5mm |
| DL-150H-214A-MXC | 150W | 100-277V | 95-214V | 143-214V | 0.5-1.05A | 91.5% | 0.95 | 6/15KV | 164*53*32.5mm |
| DL-150H-214P-MXC | 150W | 100-277V | 95-214V | 143-214V | 0.5-1.05A | 91.5% | 0.95 | 6/15KV | 164*53*32.5mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H160 |
| The number of products packaged per box | 24 pieces/box |
| Net weight of single machine | 0.565Kg |
| Full container gross weight | 13.81Kg |
