MXC Basic Series

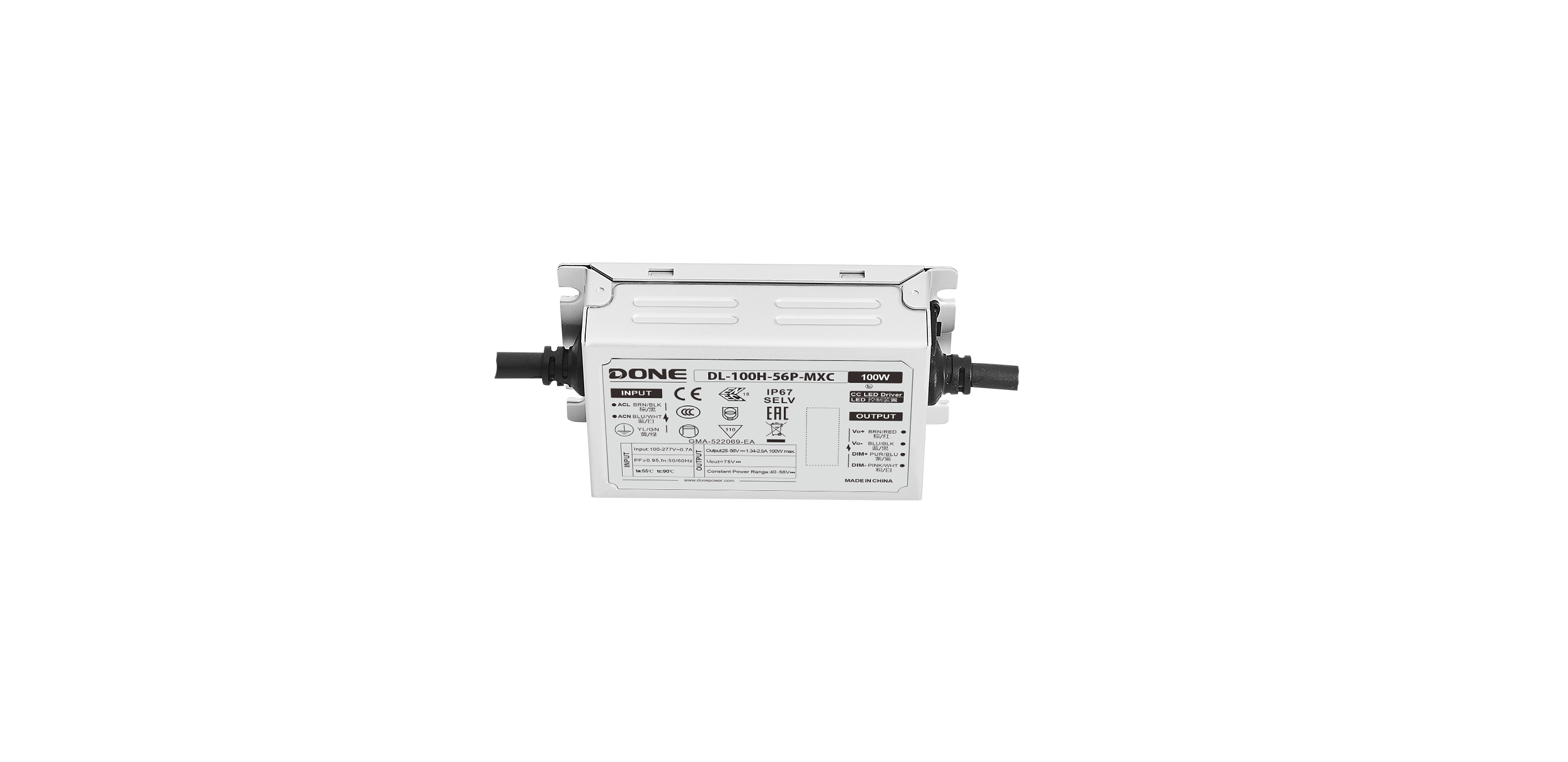

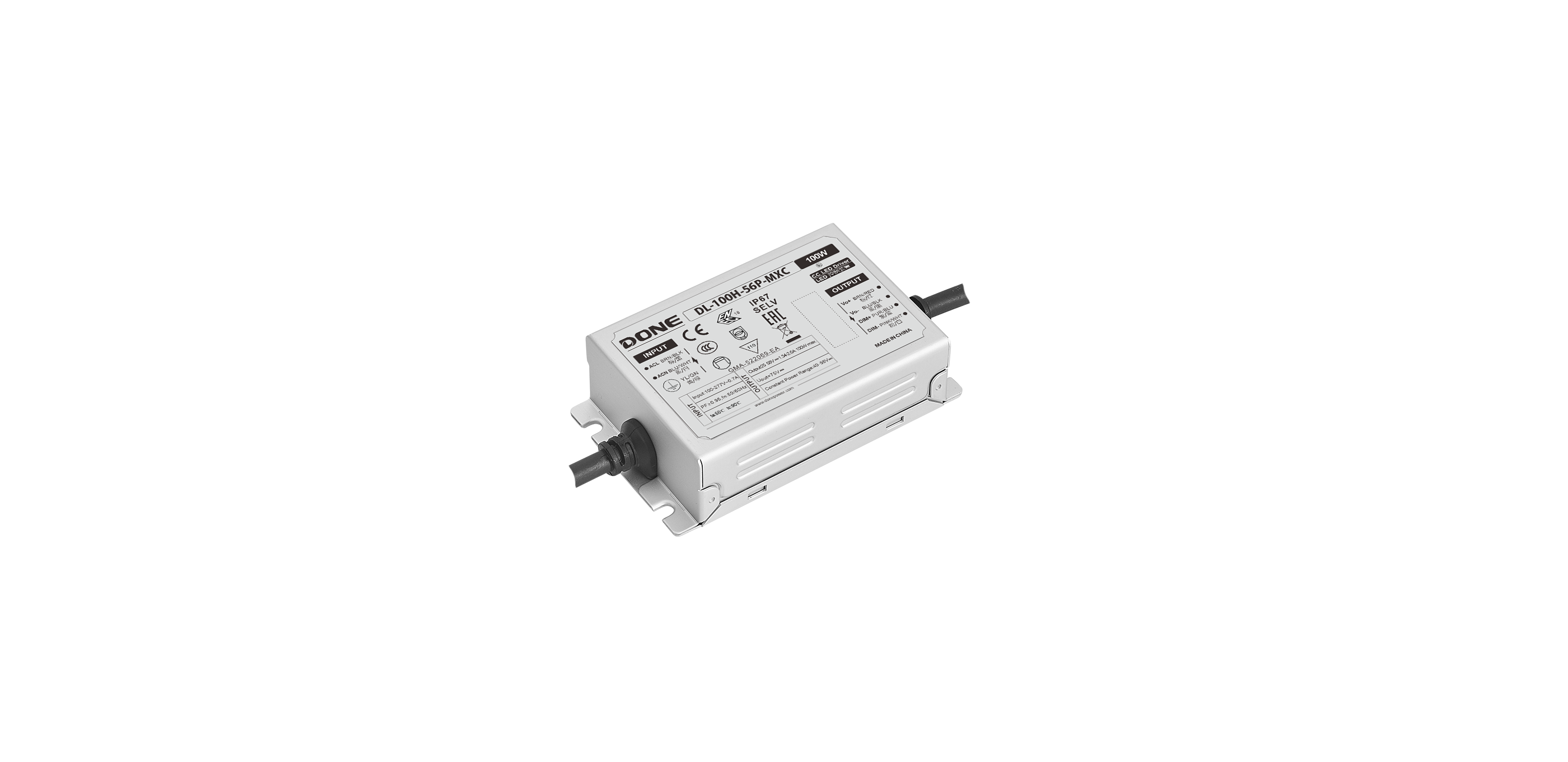

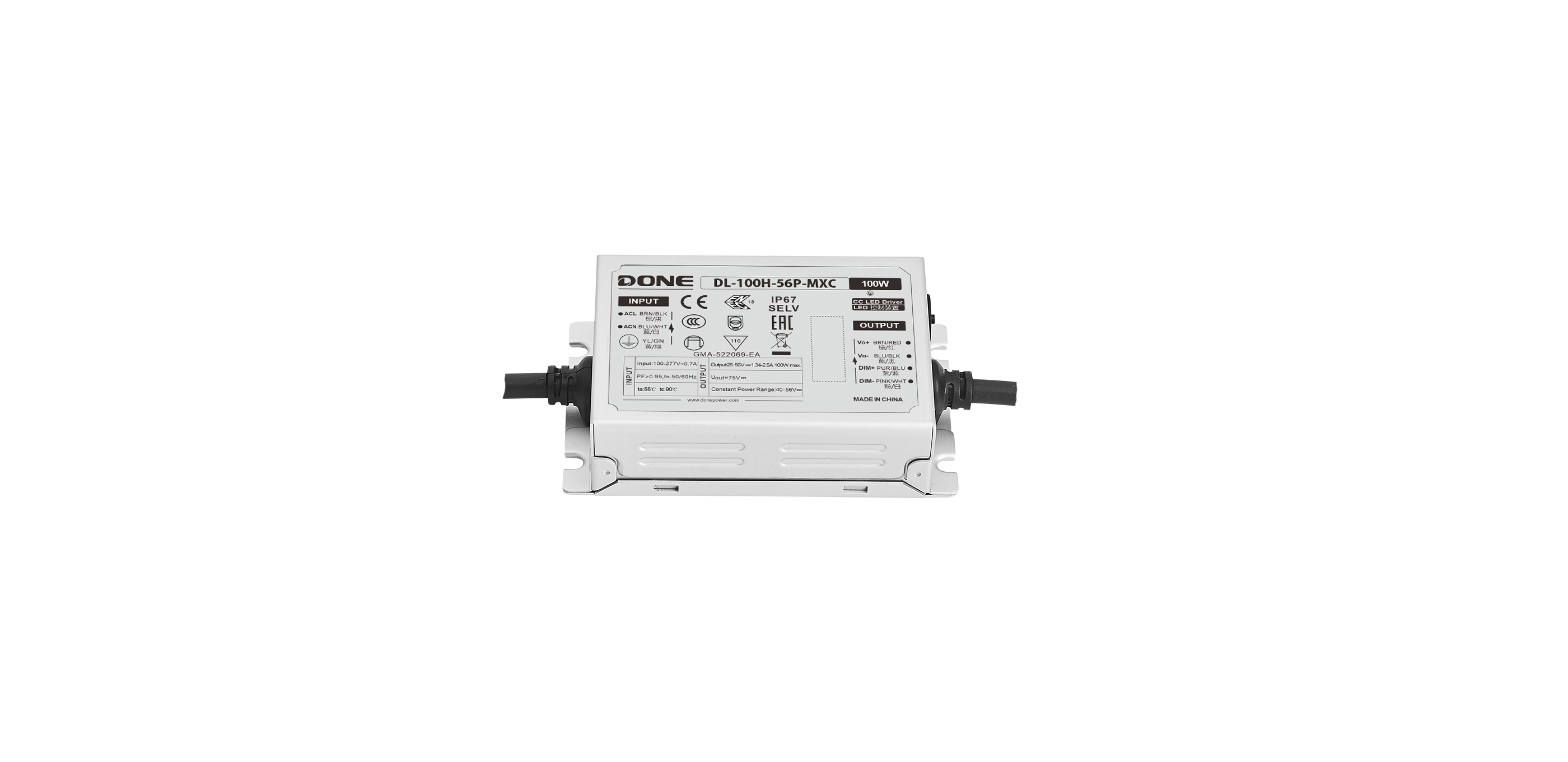

DL-100H-MXC
Power: 100W
Series: Constant current type
Application: street lights, square lighting, etc.
Certificates: CB, CE, CCC, ENEC, SAA, EAC
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I structure
Input voltage: 100-277V～ 50/60Hz
Efficiency 91% (Typ.)
Constant power drive, constant current output control mode
Metal shell structure, protection level: IP67
Lightning protection level: differential mode 4KV, common mode 6KV (50W and below)
Differential mode 6KV, common mode 10KV (60W and above)
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product size |
| DL-100H-56A-MXC | 100W | 100-277V | 25-56V | 40-56V | 1.34-2.5A | 91.0% | 0.95 | 6/15KV | 105*63*30mm |
| DL-100H-56P-MXC | 100W | 100-277V | 25-56V | 40-56V | 1.34-2.5A | 91.0% | 0.95 | 6/15KV | 105*63*30mm |
| DL-100H-143A-MXC | 100W | 100-277V | 71-143V | 95-143V | 0.5-1.05A | 91.0% | 0.95 | 6/15KV | 105*63*30mm |
| DL-100H-143P-MXC | 100W | 100-277V | 71-143V | 95-143V | 0.5-1.05A | 91.0% | 0.95 | 6/15KV | 105*63*30mm |
| The overall dimensions of the packaging box are (unit: mm) | L475*W350*H205 |
| The number of products packaged per box | 32 pieces/box |
| Net weight of single machine | 0.40Kg |
| Full container gross weight | 13.05Kg |
