MXC Basic Series

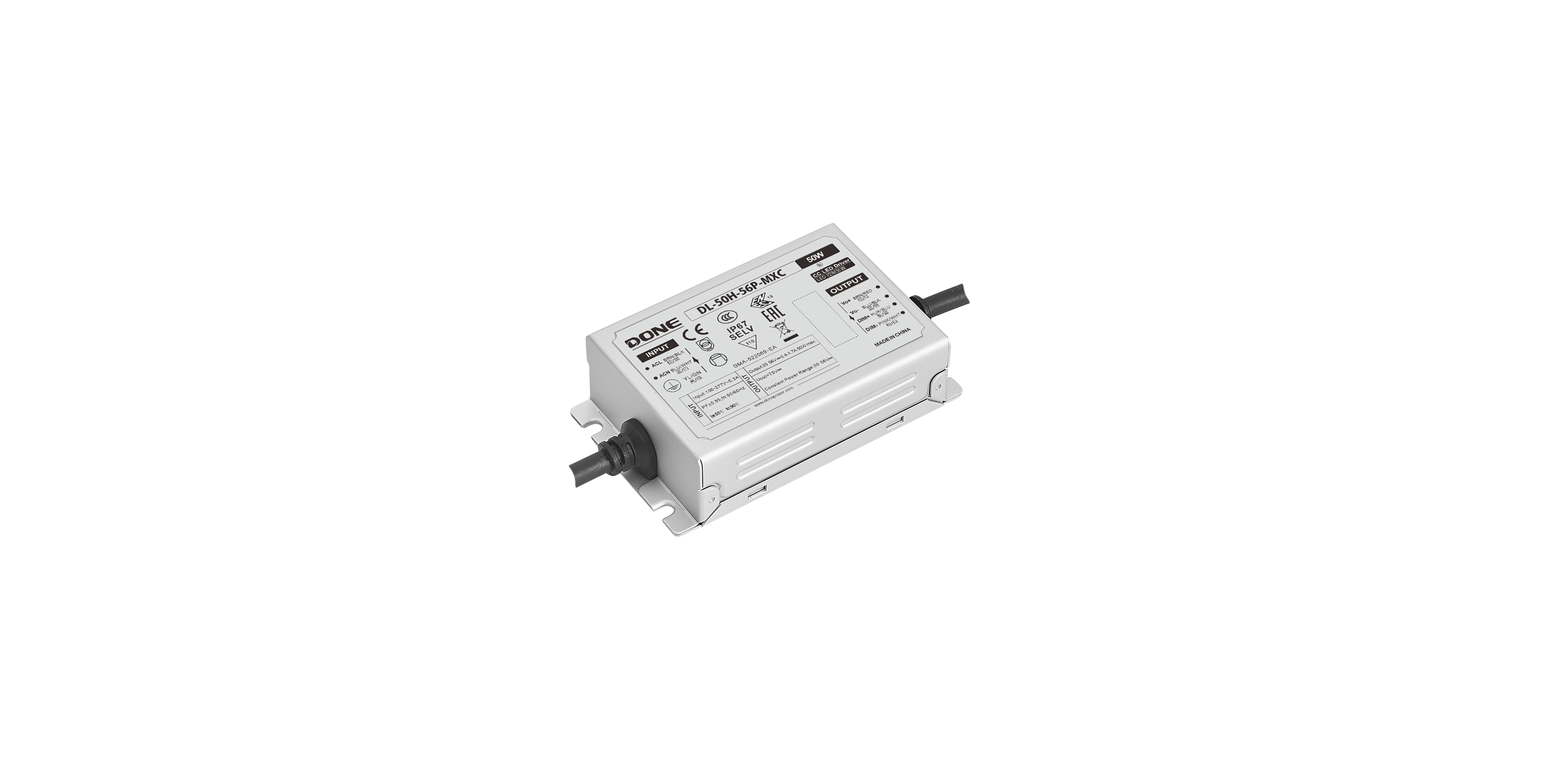

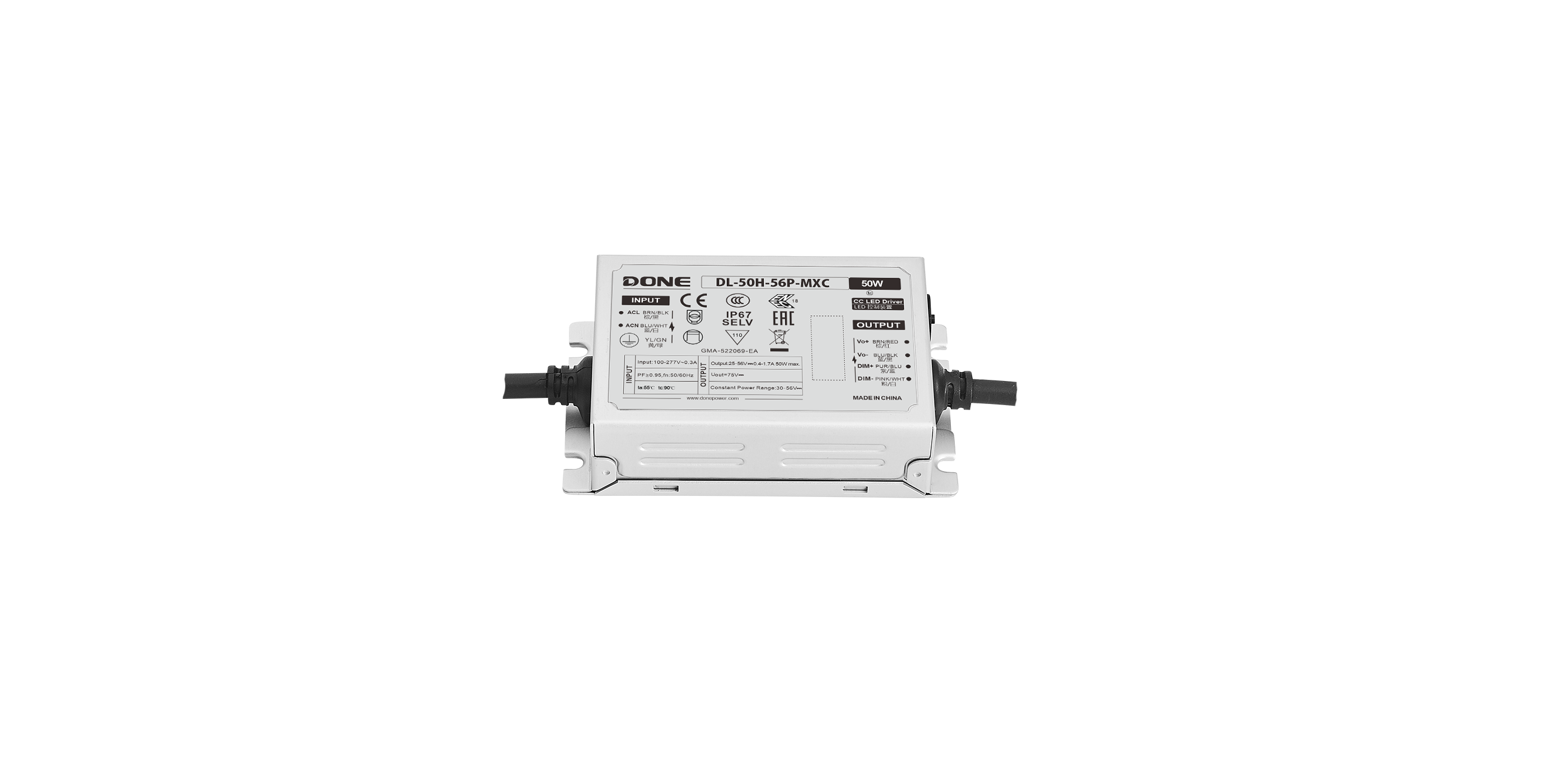

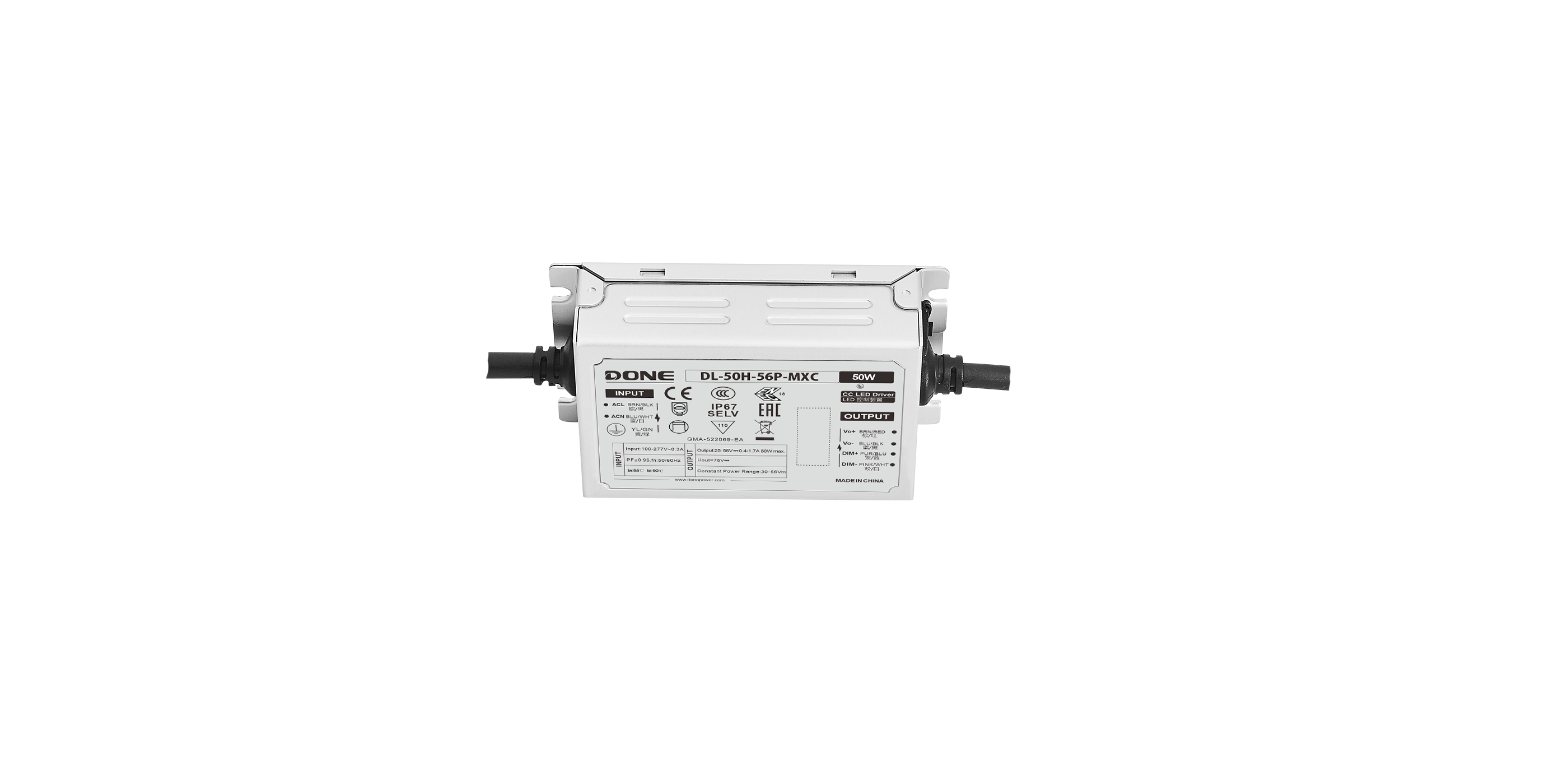

DL-50H-MXC
Power: 50W
Series: Constant Current Type
Applications: Streetlights, plaza lighting, etc.
Certificates: CB, CE, CCC, ENEC, SAA
Warranty: 5 years
- Features
- Selection Table
- Packaging & Structure
- Downloads
Class I Structure
Input voltage: 100-277V～ 50/60Hz
Efficiency: 87.5% (Typ.)
Constant power drive, constant current output control mode
Metal casing structure, protection rating: IP67
Lightning protection rating: Differential mode 4KV, Common mode 6KV (50W and below)
Differential mode 6KV, common mode 15KV (60W and above)
| Product Model | Rated power | Input voltage | Output voltage | Constant power voltage | Output current | efficiency | PF value | Lightning protection level | Product Dimensions |
| DL-50H-56A-MXC | 50W | 100-277V | 25-56V | 30-56V | 0.4-1.7A | 87.5% | 0.95 | 4/6KV | 105*53*27mm |
| DL-50H-56P-MXC | 50W | 100-277V | 25-56V | 30-56V | 0.4-1.7A | 87.5% | 0.95 | 4/6KV | 105*53*27mm |
| DL-50H-72A-MXC | 50W | 100-277V | 36-72V | 48-72V | 0.5-1.05A | 89.0% | 0.95 | 4/6KV | 105*63*30mm |
| DL-50H-72P-MXC | 50W | 100-277V | 36-72V | 48-72V | 0.5-1.05A | 89.0% | 0.95 | 4/6KV | 105*63*30mm |
| The external dimensions of the packaging box are (unit: mm). | L475*W350*H205 |
| Quantity of products per box | 32 pieces/box |
| Single unit net weight | 0.35Kg |
| Gross weight of the whole box | 11.45Kg |
